Product Description

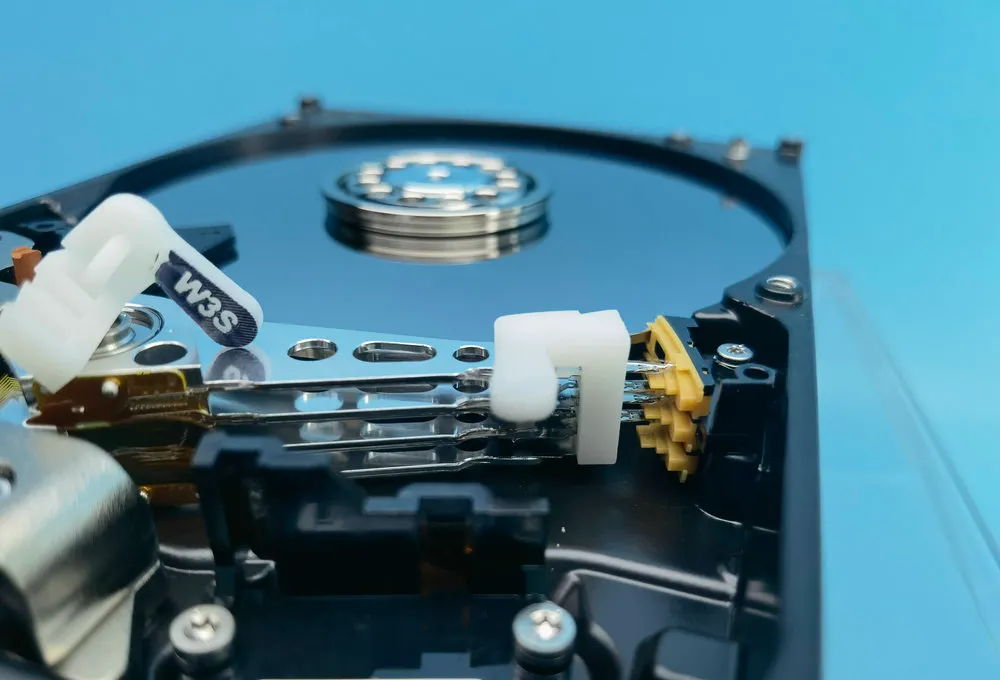

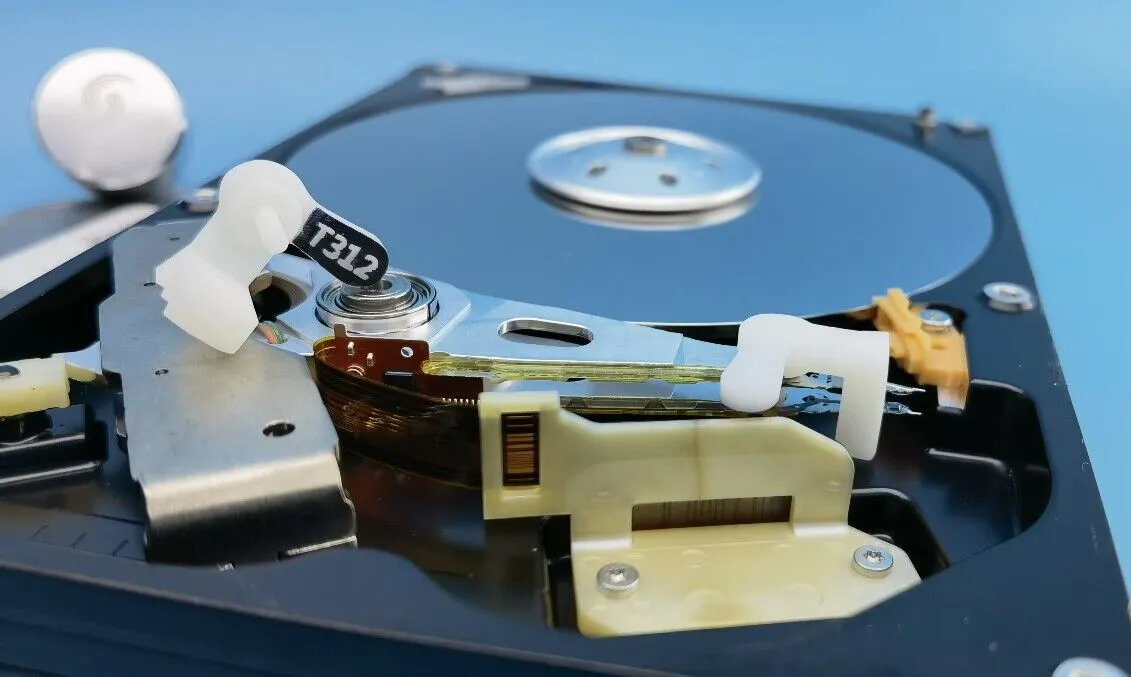

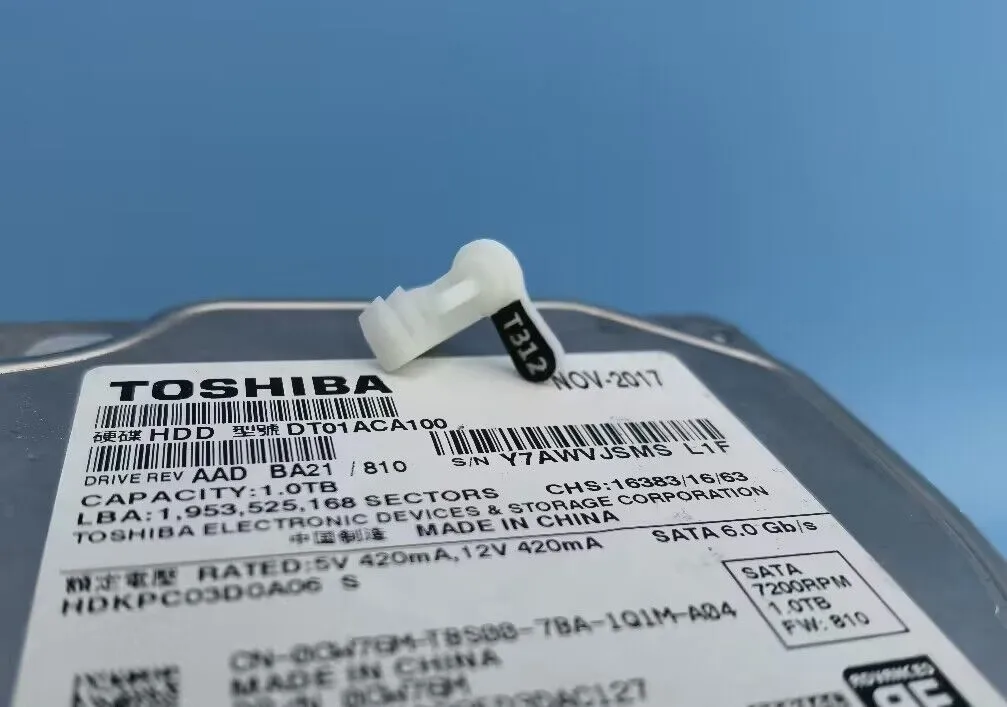

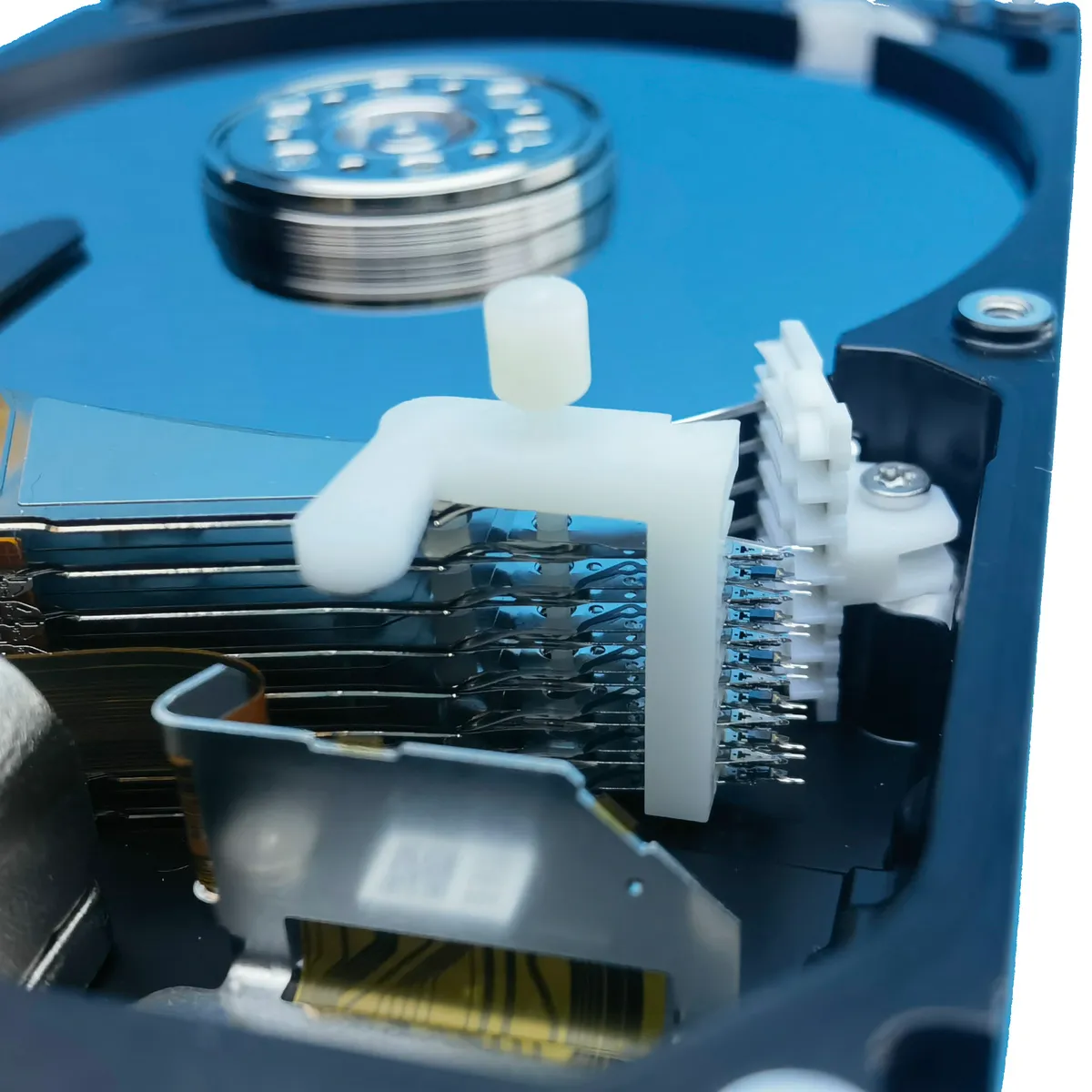

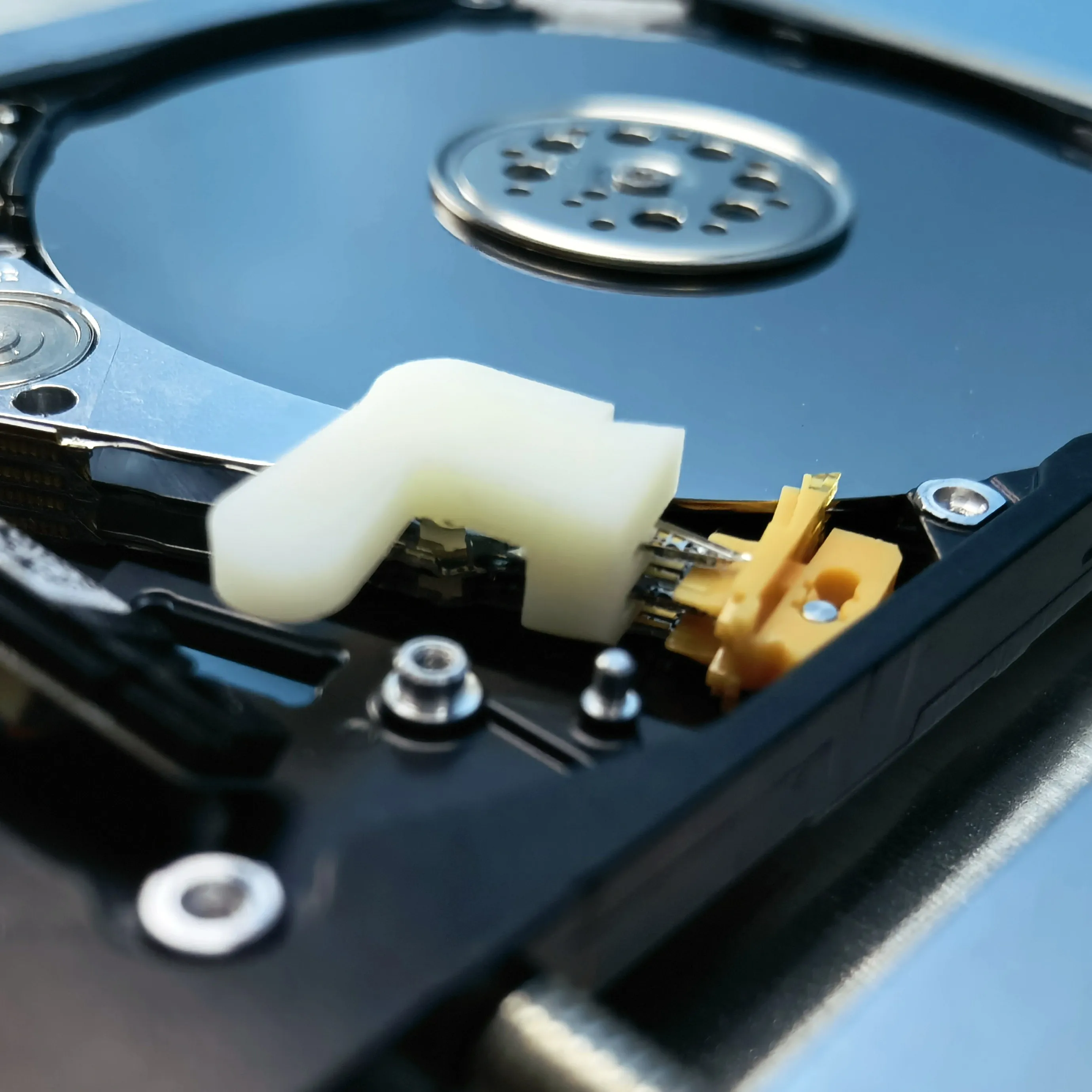

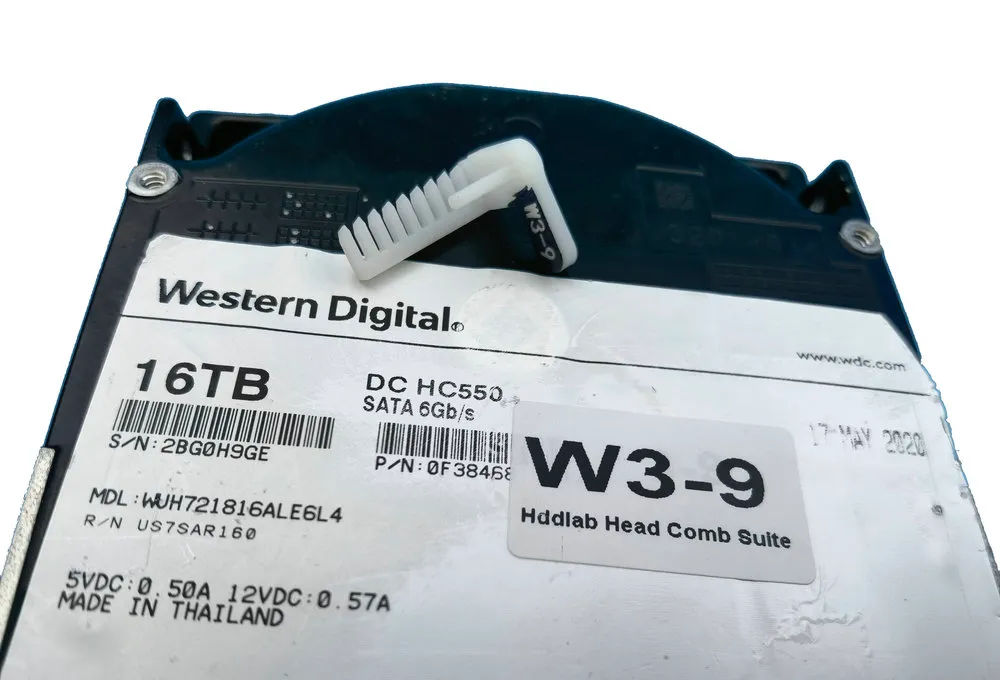

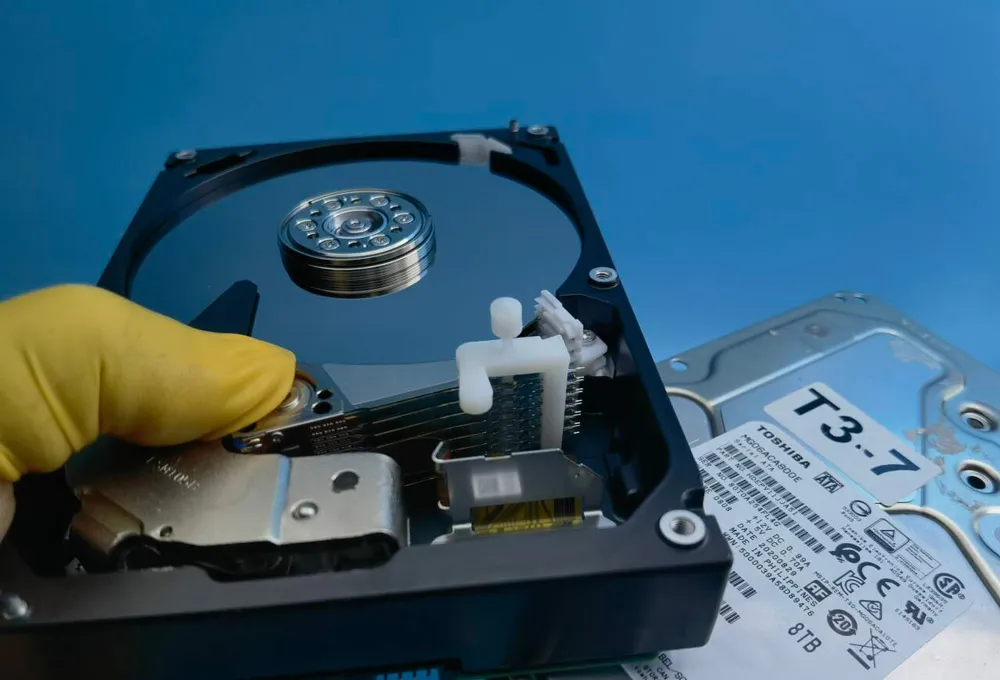

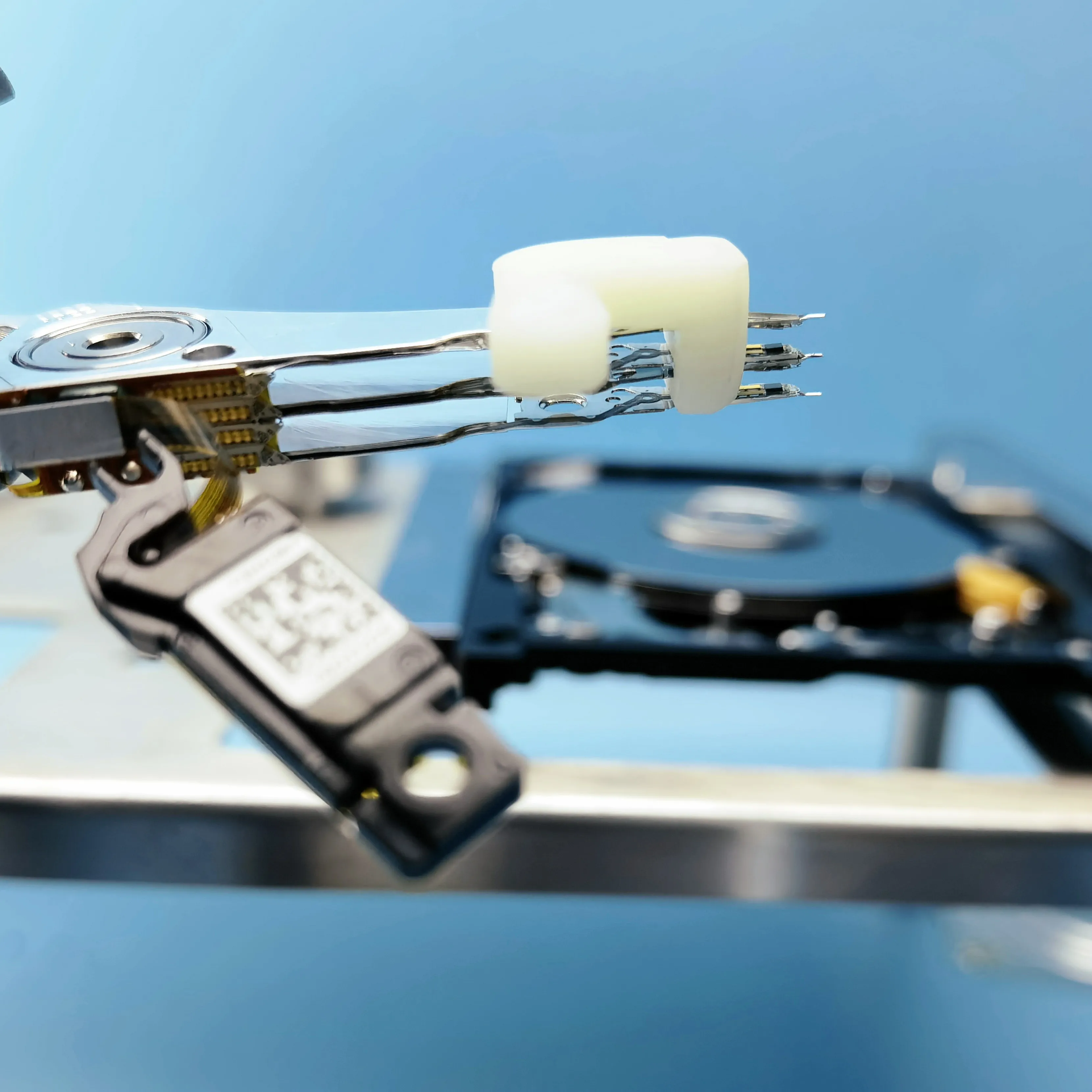

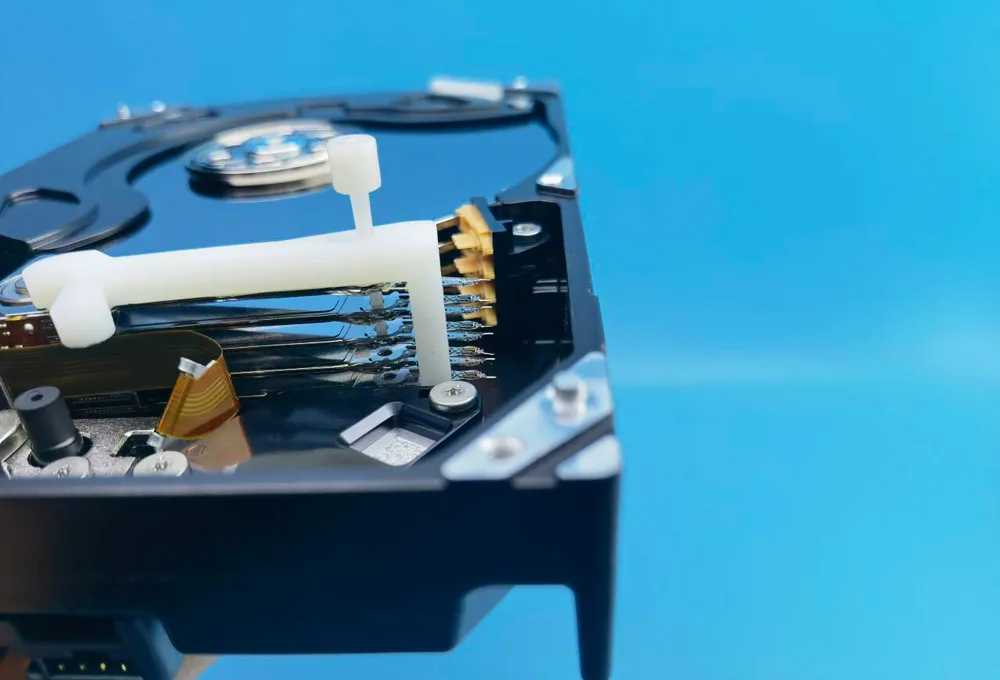

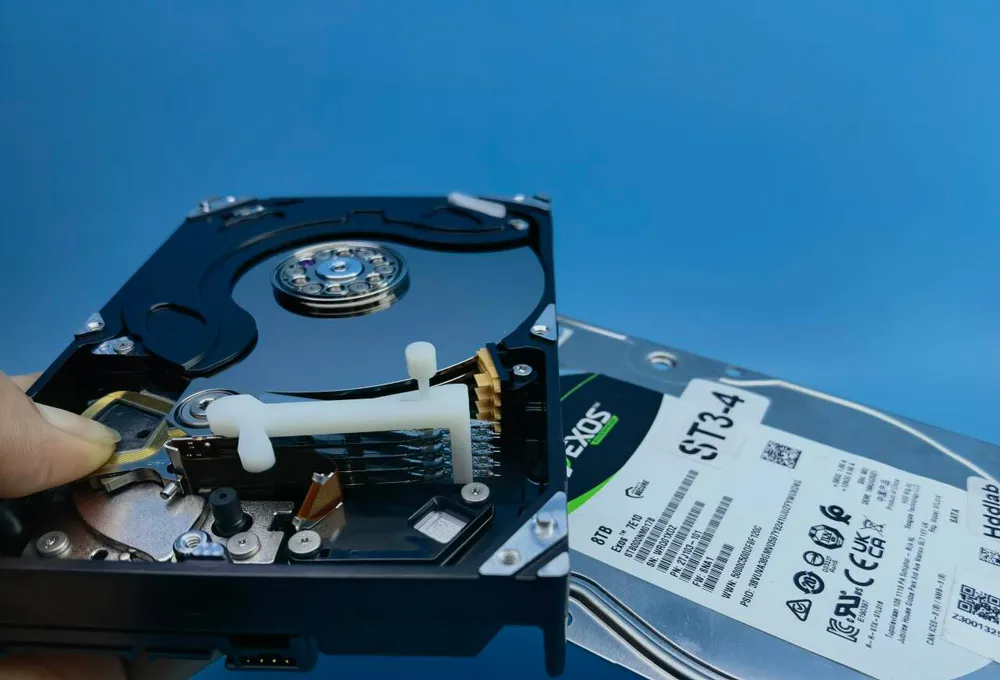

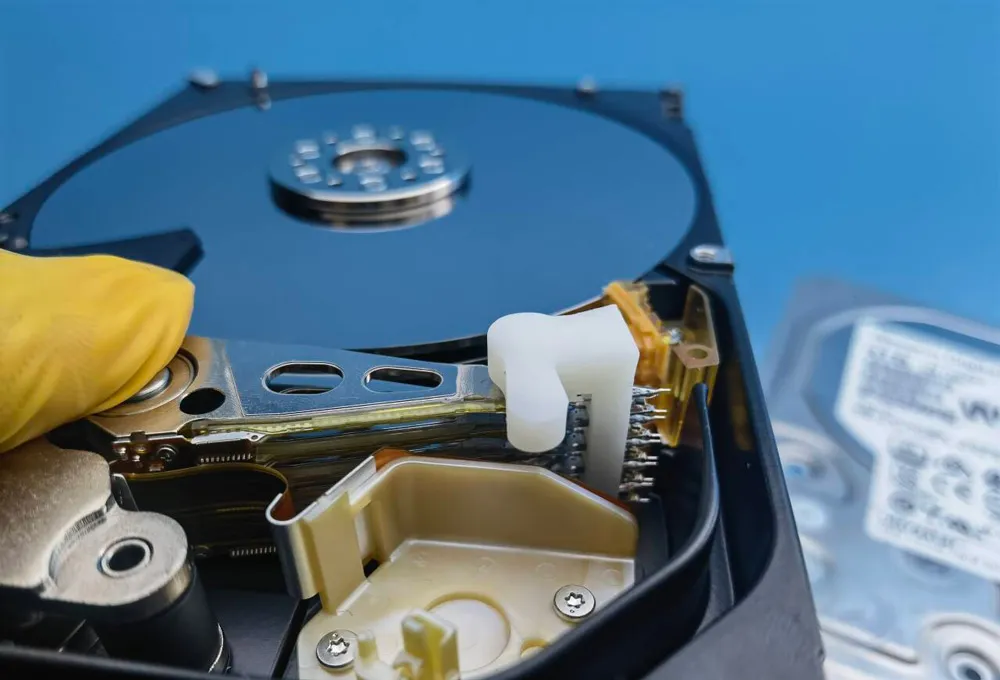

Head Combs are a safe and easy way to change heads on hard disk drives. These tools ensure a non-contact head replacement.

Non-contact head replacement implies that there is no contact between the heads, or between heads and platters in processes of dismounting the donor heads and mounting the heads on a patient drive.

Traditional techniques of replacing the heads imply contact between the heads themselves and contact of heads with the platters in data area. These problems especially come to light on drives which have suffered some sort of physical damage (head crash).

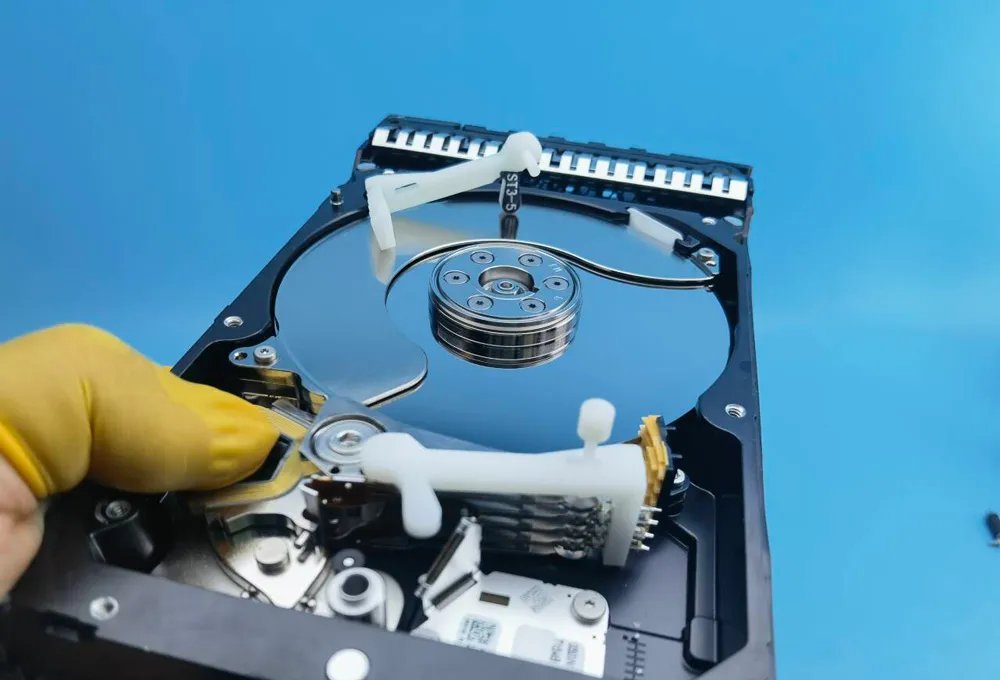

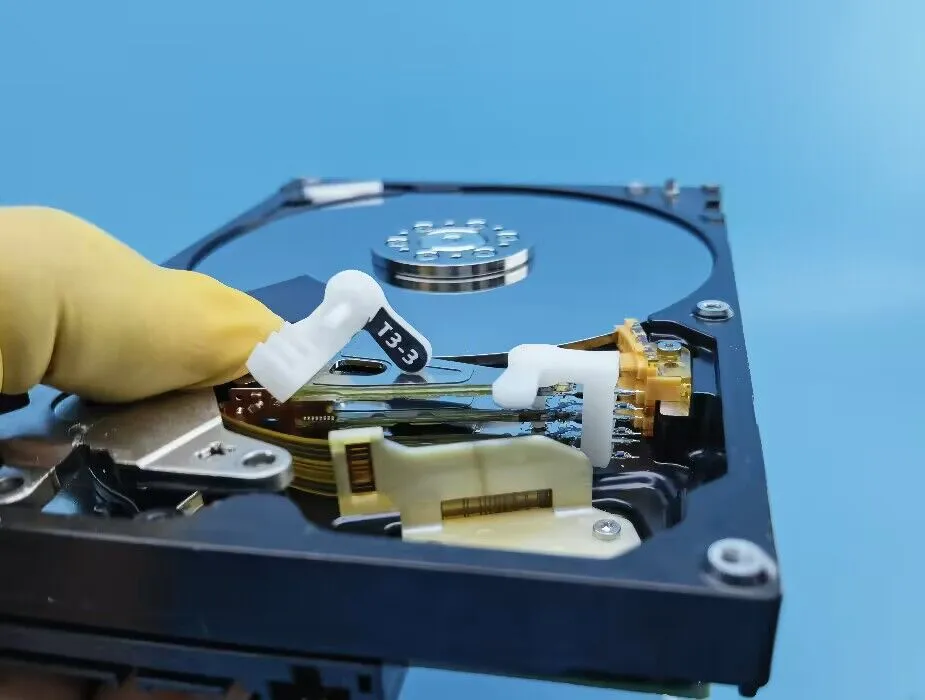

Heads can be transferred from donor to patient hard drive in few easy steps. During the process of head replacement, heads do not touch each other or make any contact with the platters. Each head change tool is designed for specific brands and models of hard drives since mechanics of different hard drives doesn`t match.

This set of head replacement tools (Head Combs) can be used to replace heads on almost all 2.5" and 3.5" (WD ST Samsung HGST Fujitsu and Toshiba )hard drives which have their heads parked on a ramp. These head replacement tools are used to ensure that the heads do not touch each other in proces of replacement and to enable their easy mounting back to the ramp.These tools don`t solve the head compatibility problem. They will only assure that the process of head replacement goes easily on supported drives.


List of Head Replacement Tools families and models :

Hard Drive Head Combs:
ST 2-5: 4TB laptop HDD head comb, ST4000LM016, 5 platters, 10 heads
ST2-4: 2.5″ HDDS, 4 platters
ST2-2: 2.5″ HDDS, 2 platters
ST2-1: 2.5″ HDDS, 1 platters
ST332: 3.5″ HDDS, 2 platters

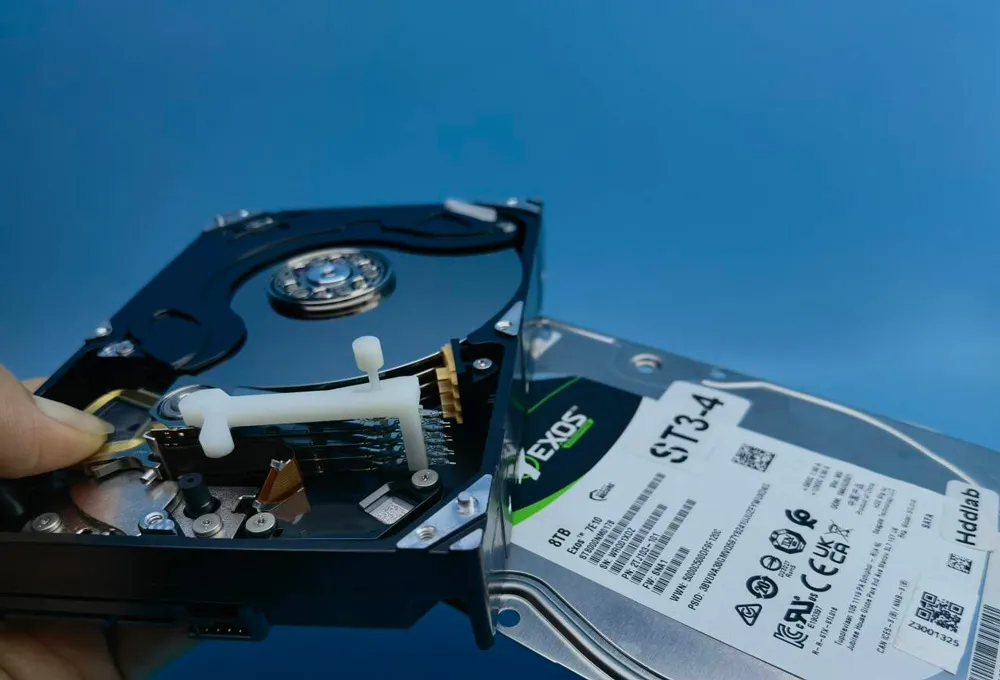

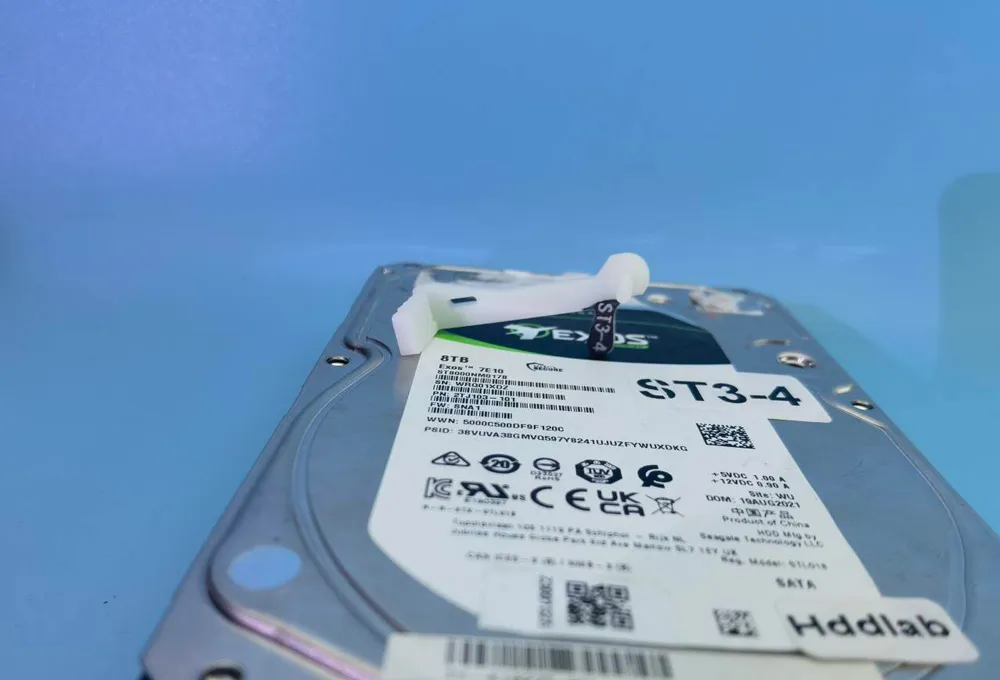

ST334: 3.5″ HDDS, 4 platters
ST313: 3.5″ HDDS, 3 platters, type 1

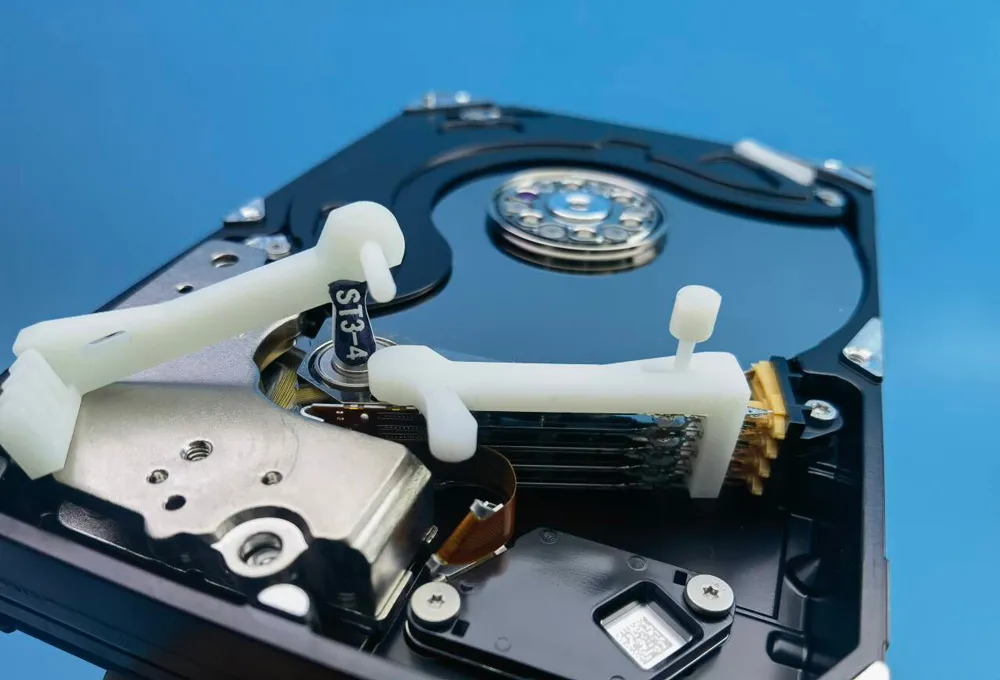

ST323: 3.5″ HDDS, 3 platters, type 2
ST ES3-5: enterprise 3.5″ hard drives, 1-5 platters supported and the ES.3 1-3T hard drives are tested.
ST3 6: 3.5″ 8TB hard drives with 6 platters and 12 heads
SAS 2.5 Drives

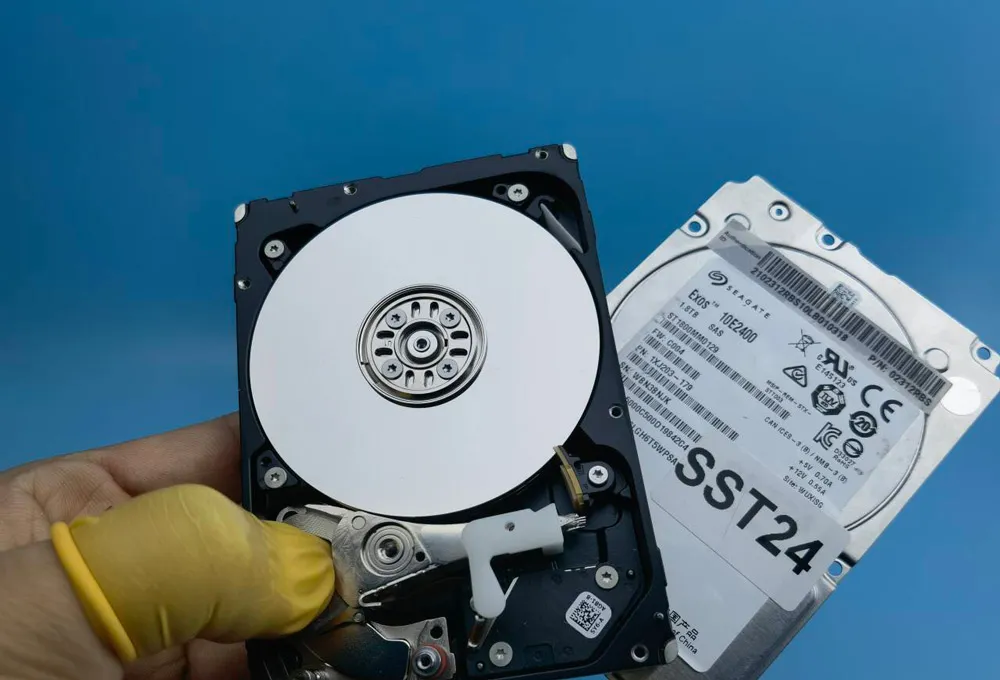

SST 2 1: SAS 2.5″HDDS, 1 platter
SST 2 2: SAS 2.5″HDDS, 2 platters
SST 2 3: SAS 2.5″HDDS, 3 platters


Hard Drive Head Combs:

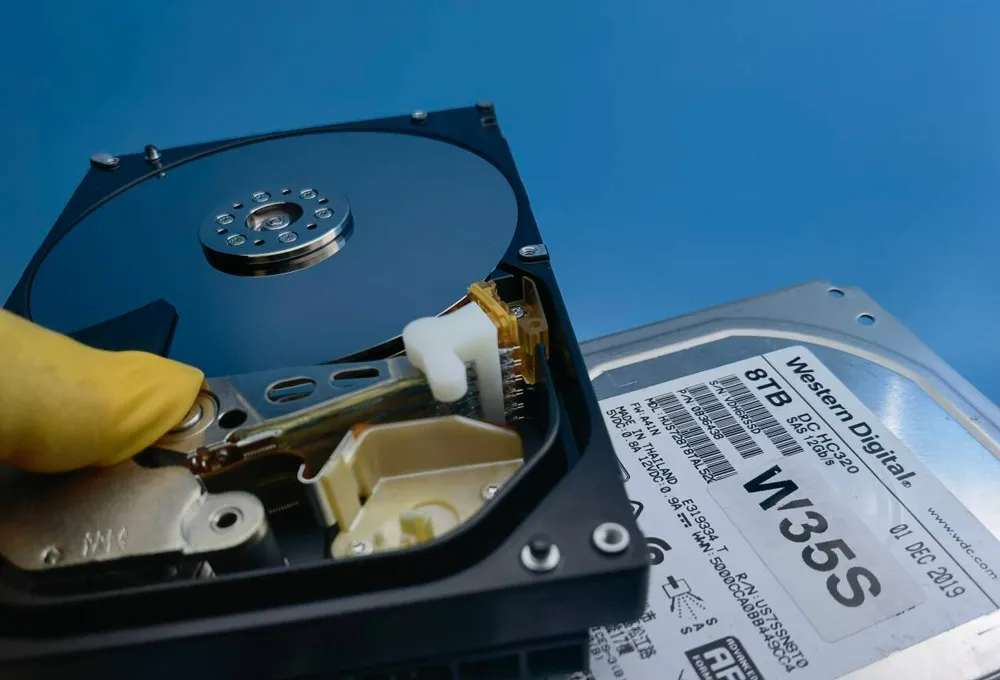

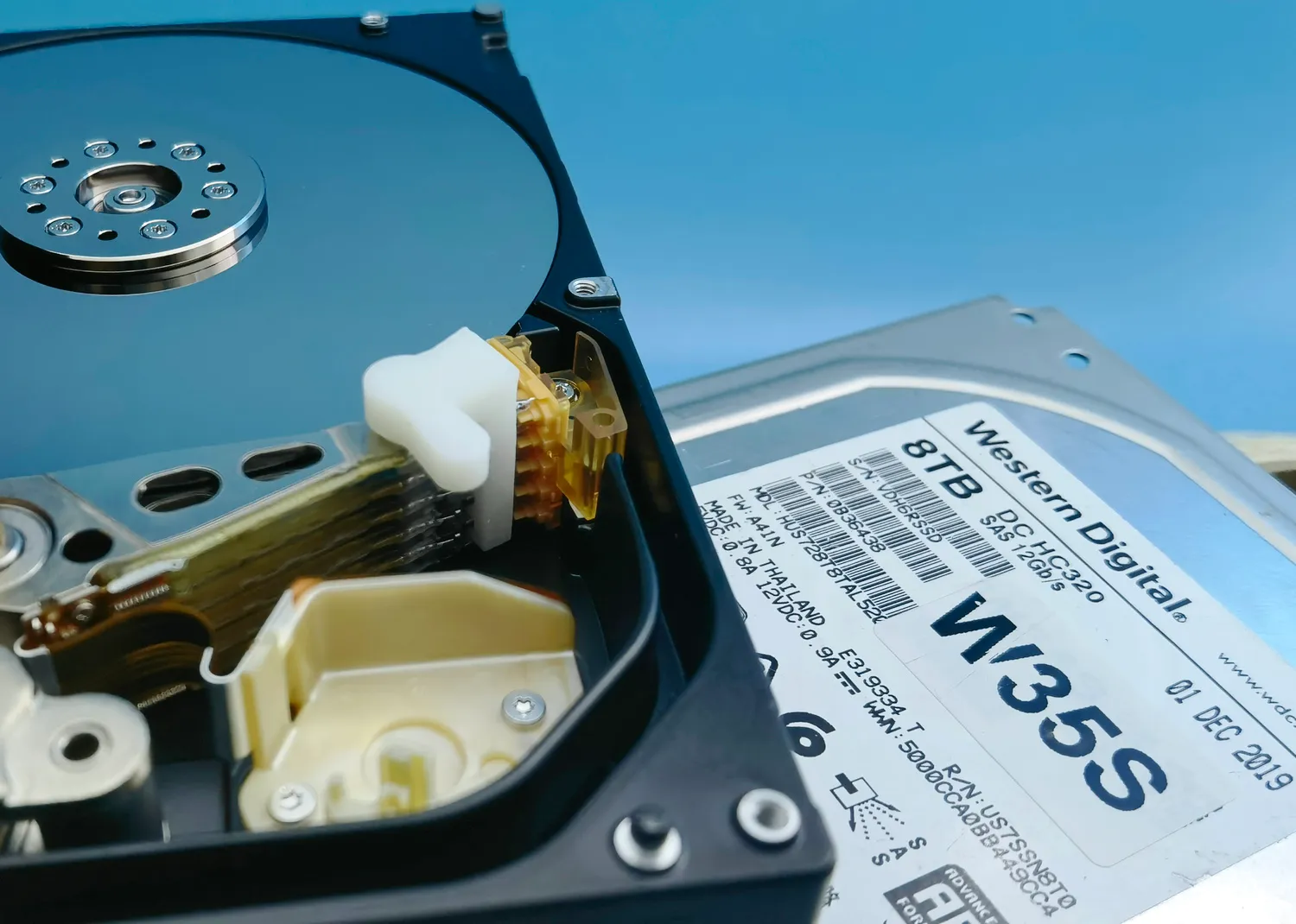

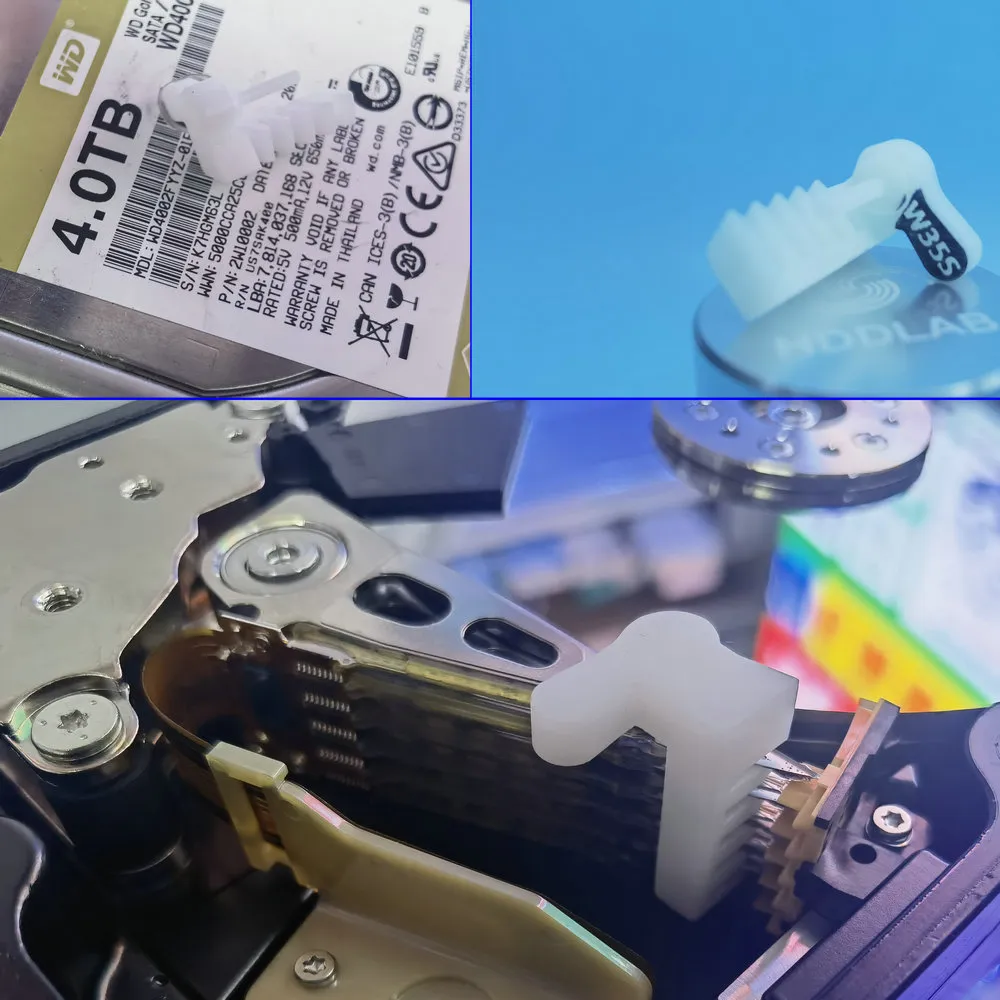

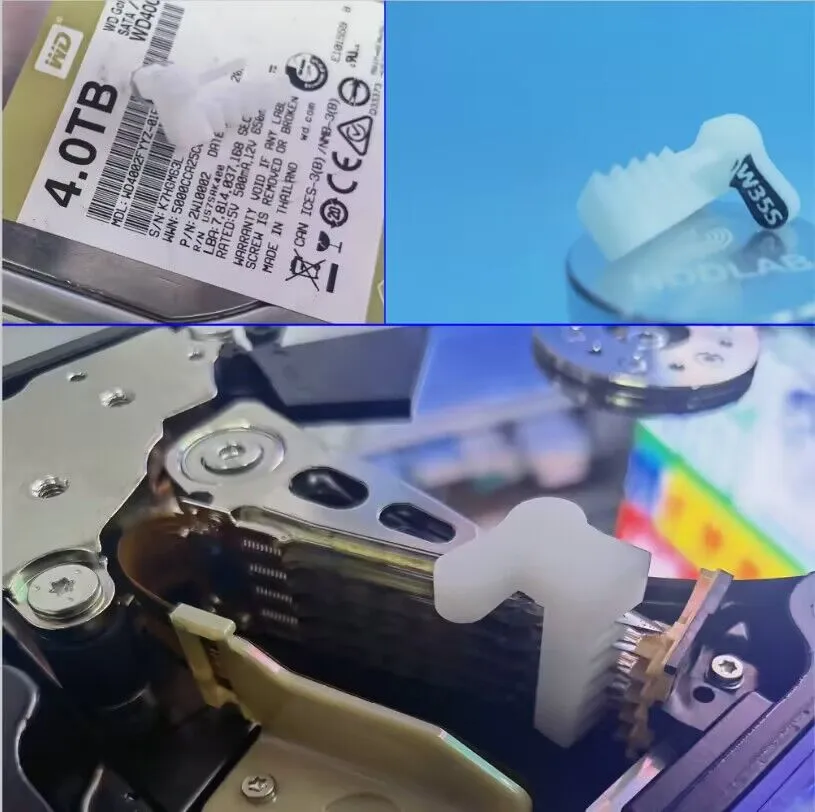

W3 5: WD 6TB HDD head comb, 3.5″ HDDS, 5 platters 10 heads;

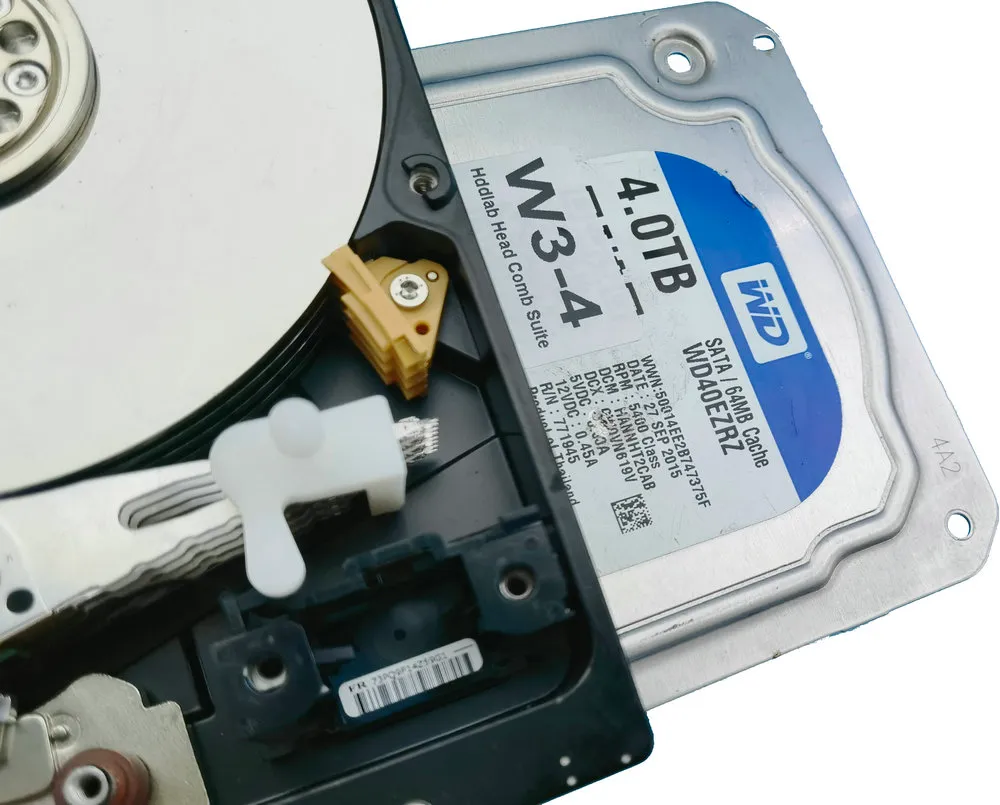

W3 4: 3.5″ HDDS, 4 platters
W313: 3.5″ HDDS, 3 platters, type 1
W3 3: 3.5″ HDDS, 3 platters, type 2
W3 2: 3.5″ HDDS, 2 platters
WD2 5: WD new 2.5″ hard drives of WD40NMZW, WD30NMVW 5 platters 10 heads
W2 4: 2.5″ HDDS, 4 platters
W2 3: 2.5″ HDDS, 3 platters

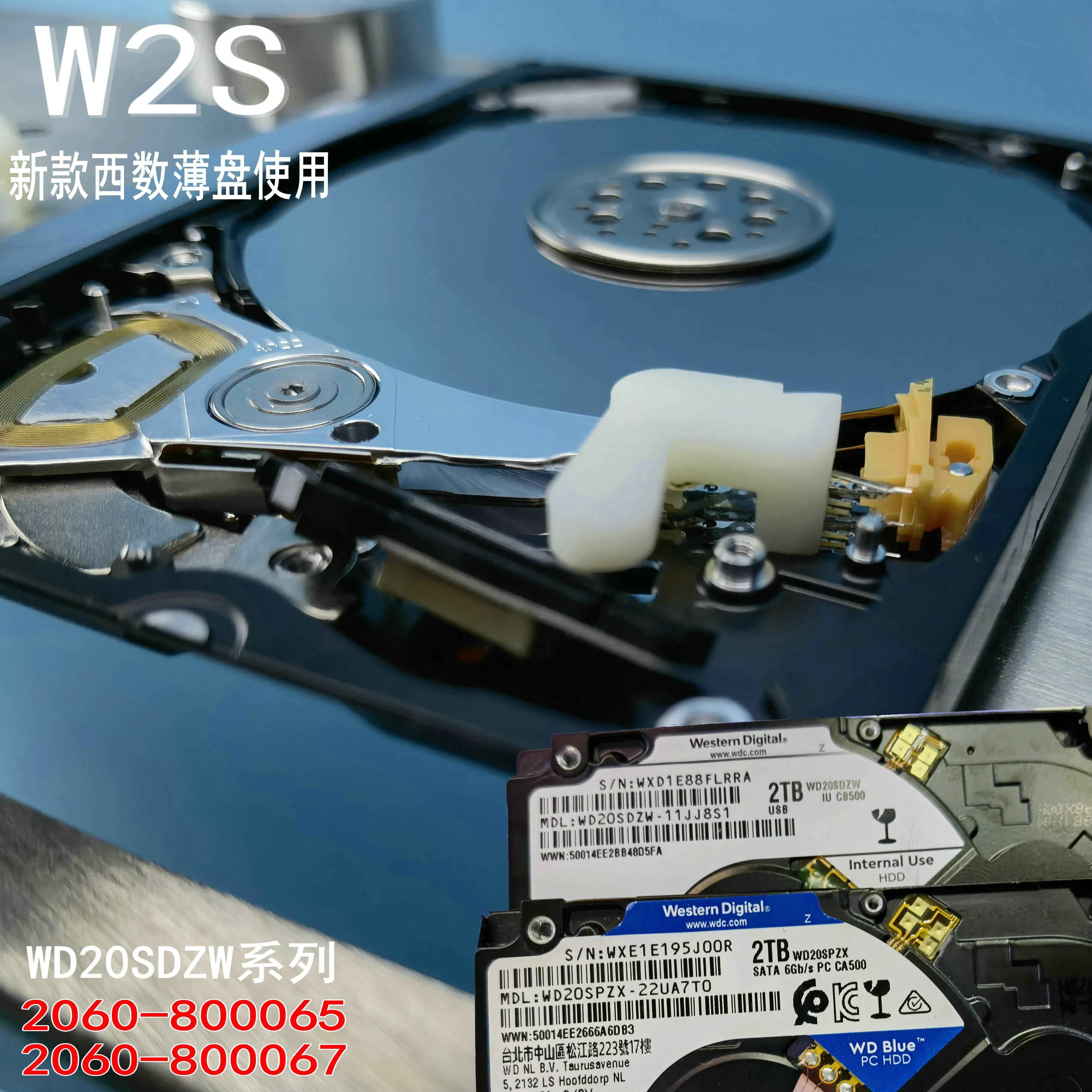

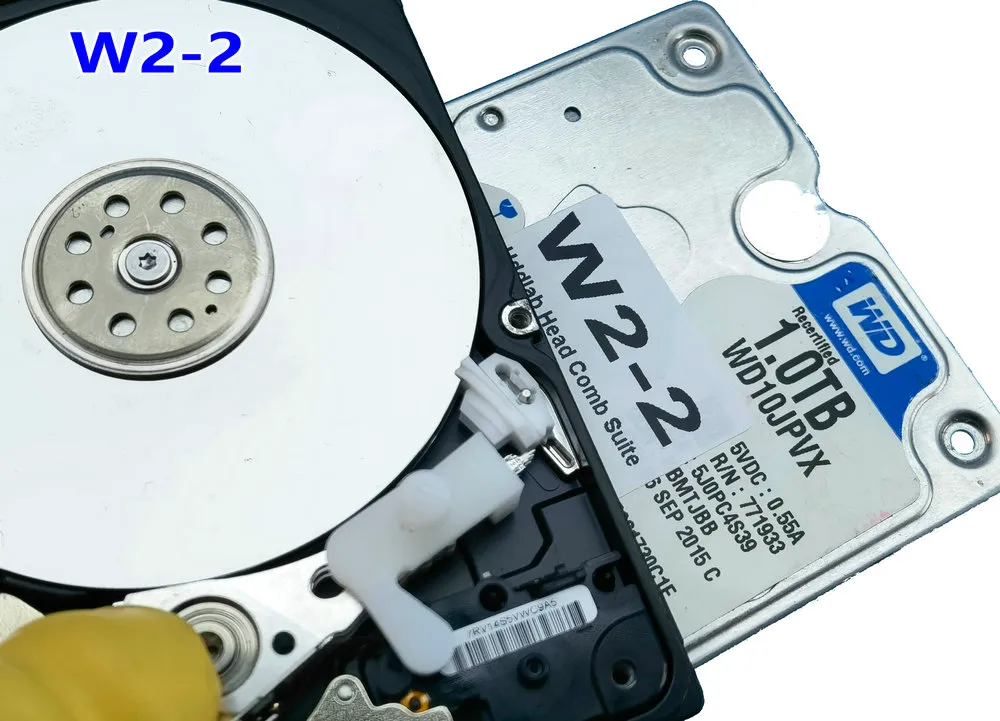

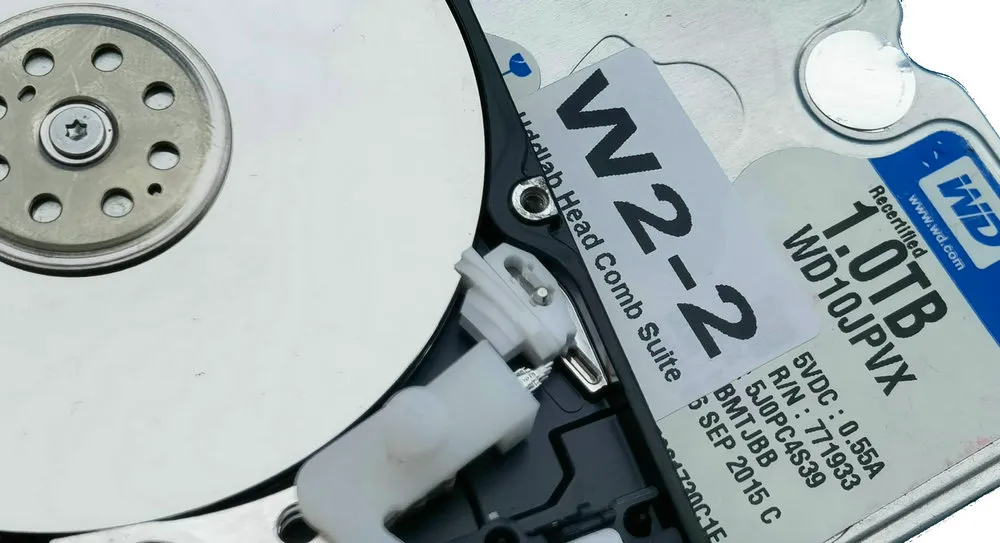

W2 2: 2.5″ HDDS, 2 platters

Hitachi(HGST) Hard Drive Head Combs:
H3-1 3: 3.5″ Hitachi HDDS, 3 platters
H3 5: 3.5″ Hitachi HDDS, 5 platters
H3-1 2: 3.5″ Hitachi HDDS, 2 platters
H2 2: 2.5″ Hitachi HDDS, 2 platters
H2 1: 2.5″ Hitachi HDDS, 1 platter
HUS2 2: 2.5″ Hitachi SAS HDDS, 2 platters.

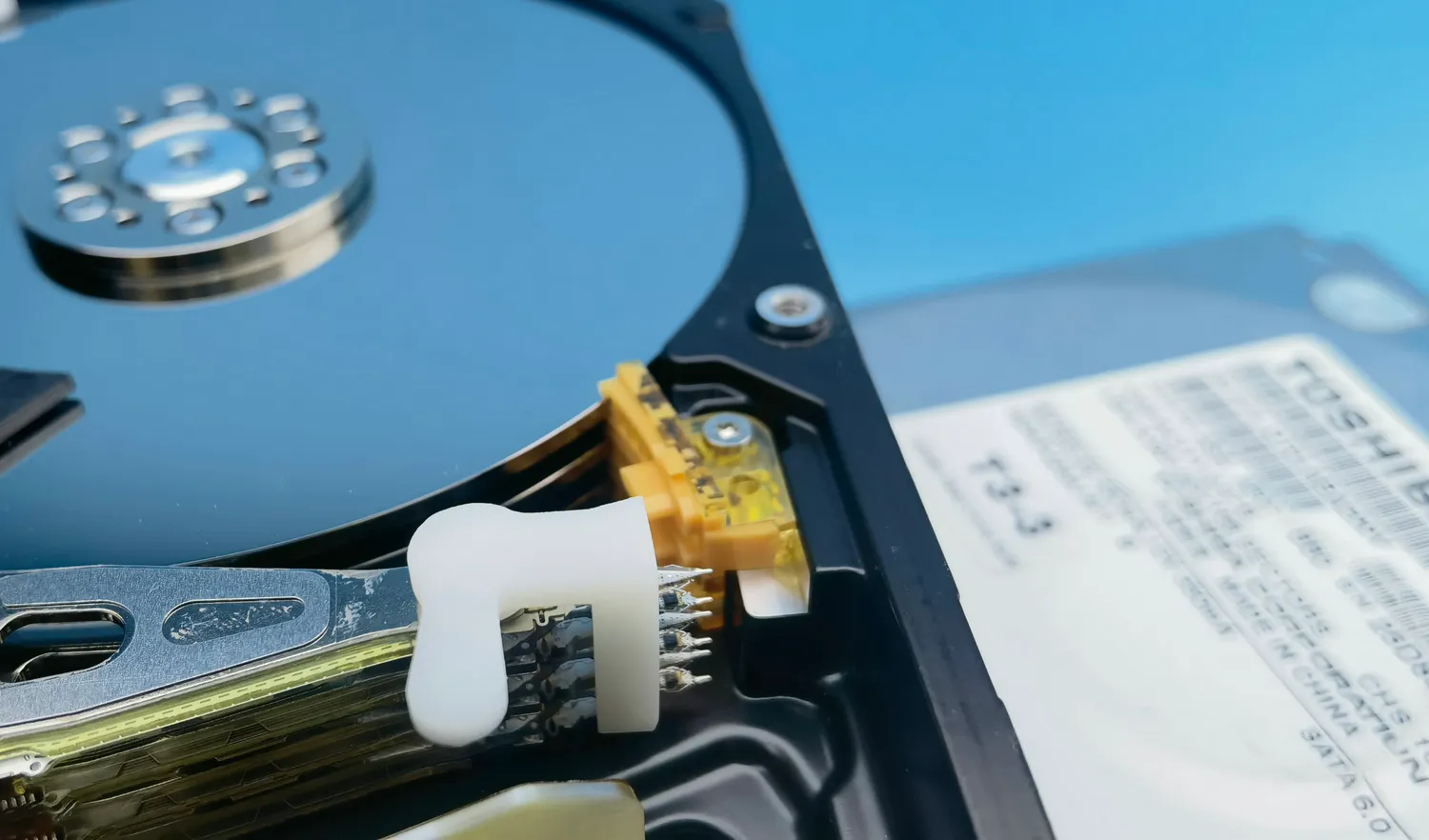

Toshiba Hard Drive Head Combs:

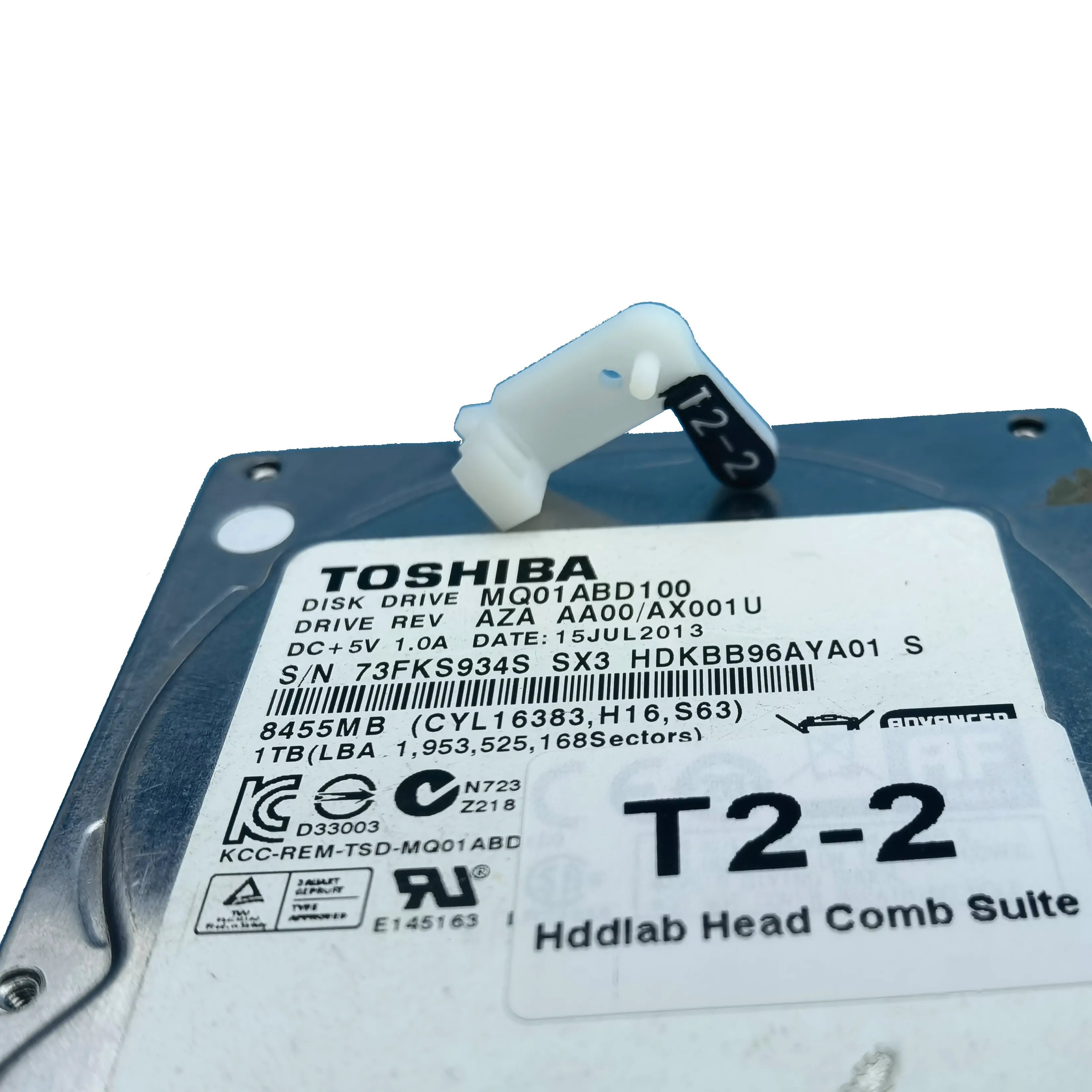

T2 2: Toshiba 2.5″ HDDS, 2 platters
T2 3: Toshiba 2.5″ HDDS, 3 platters
T2 4: Toshiba new 2.5″ hard drives with 4 platters and 8 heads

Fujitsu Hard Drive Head Combs:
FU2 2: Fujitsu Head Combs: 1 piece, Fujitsu 2.5″ HDDS, 2 platters
FUS 2 2: Fujitsu SAS 2.5″ HDD, 2 platters, 4 heads (S26361-F4006-L114 )

Samsung Hard Drive Head Combs:
SX2 2: Samsung Head Combs: 1 piece, Samsung 2.5″ HDDS, 2 platters
SX2 3: Samsung 2.5″ HDD, 3 platters, ST2000lm003 2tb laptop drive
