4x Intel i226-V 2.5G LAN AMD Ryzen 7 5825U 5800U R5 5600U Firewall Mini Router PC 3*NVMe 2*SATA DP Type-C 3x4K UHD NAS Server
Notice
Intel i226- new network card, pfSense, ROS etc system suppliers maybe have not released compatible driver to match yet, suggest to install newest version of following systems: OPNsense 22.x, pfSense Plus, OpenWrt, ESXi, Proxmox, PVE, CentOS etc. Please make clear before buying, DO NOT open dispute because of system issue.

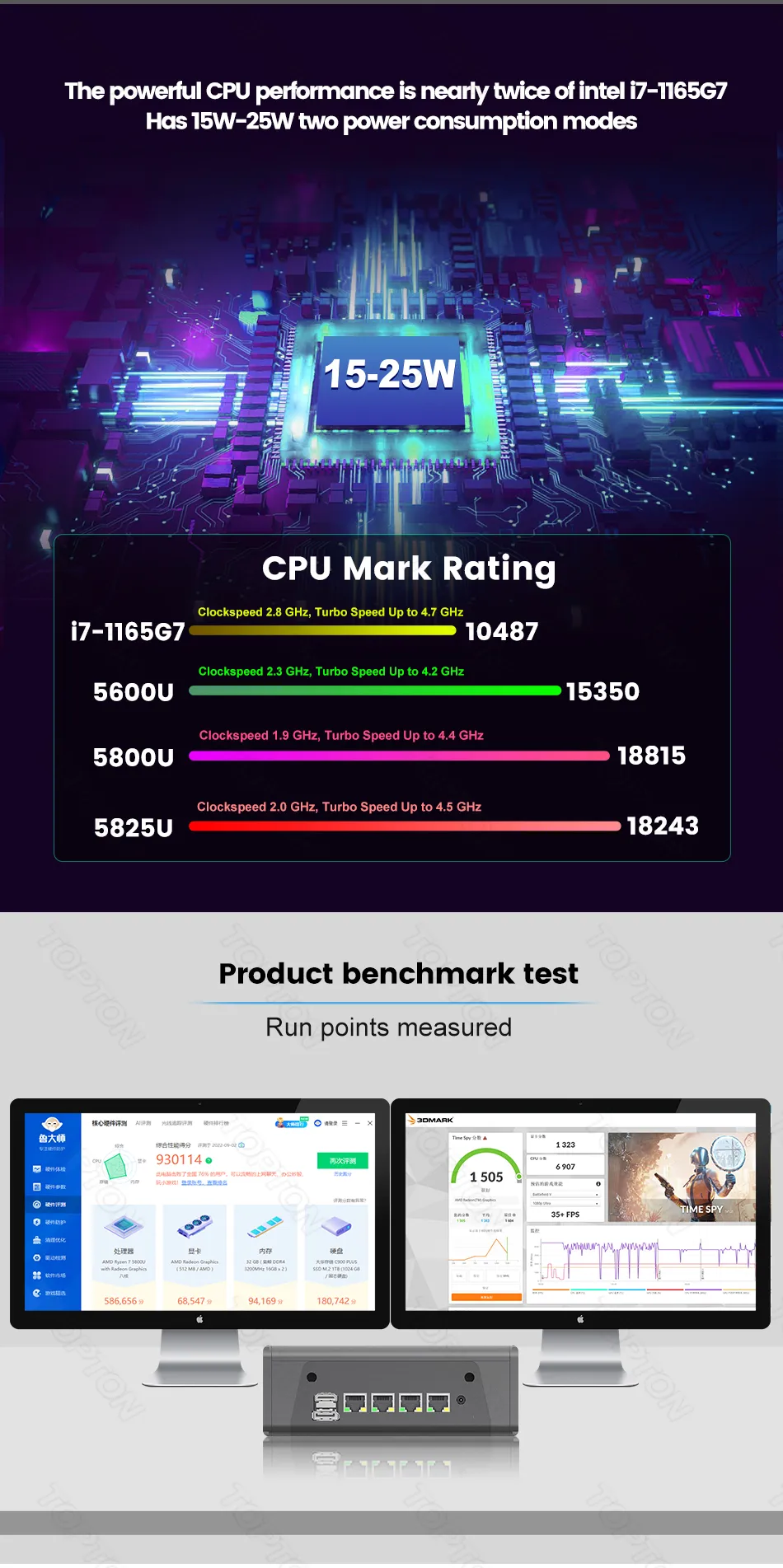

Processors | Cores & Threads | Cache | Base Frequency | Max Turbo Frequency | TDP | Graphics |
Ryzen 5 5600U | 6 cores, 12 threads | 16M | 2.30 GHz | 4.20 GHz | 15W | AMD Radeon Graphics 7 Core 1800MHz |
Ryzen 7 5800U | 8 cores, 16 threads | 16M | 1.90 GHz | 4.40 GHz | 15W | AMD Radeon Graphics 8 Core 2000MHz |
Ryzen 7 5825U | 8 cores, 16 threads | 16M | 2.00 GHz | 4.50 GHz | 15W | AMD Radeon Graphics 8 Core 2000MHz |

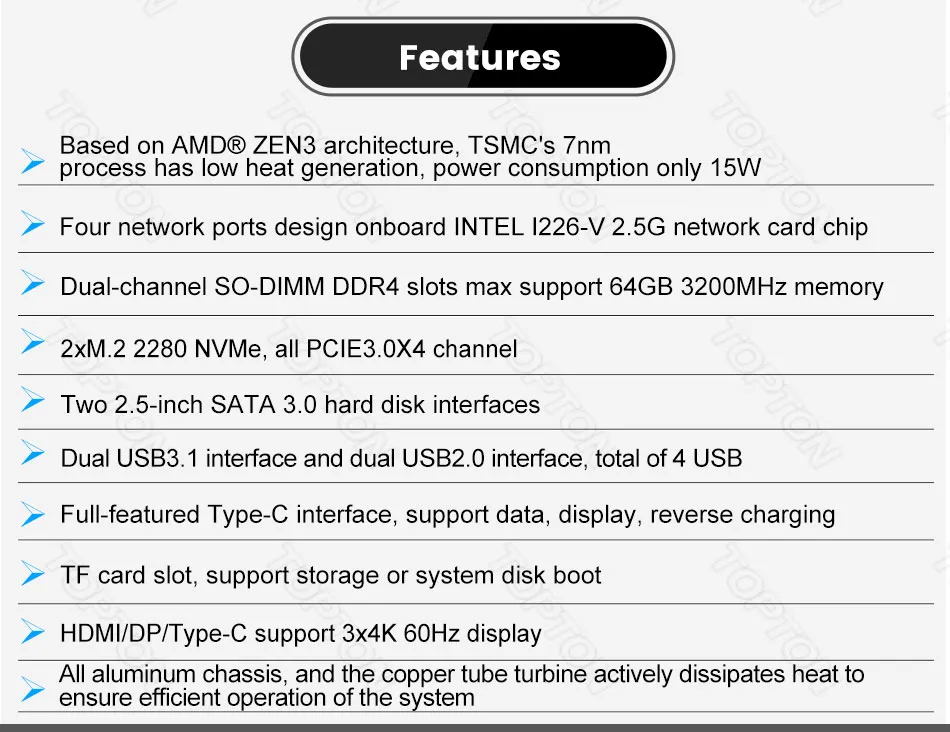

Product Highlight

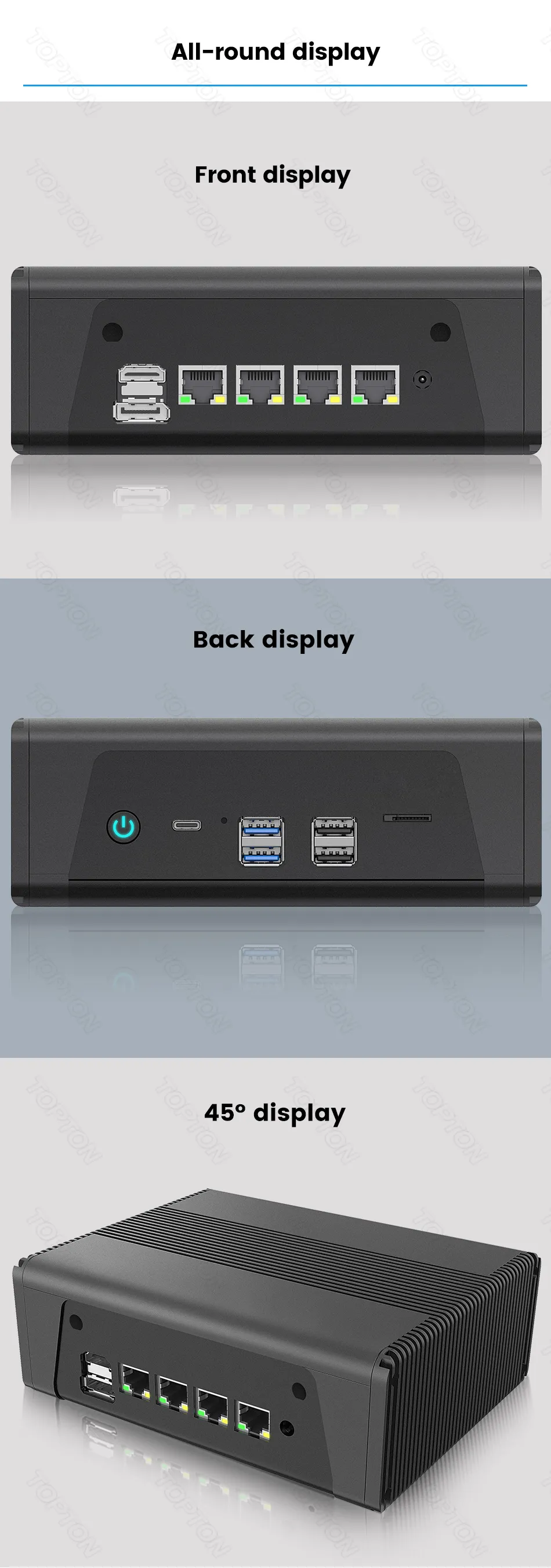

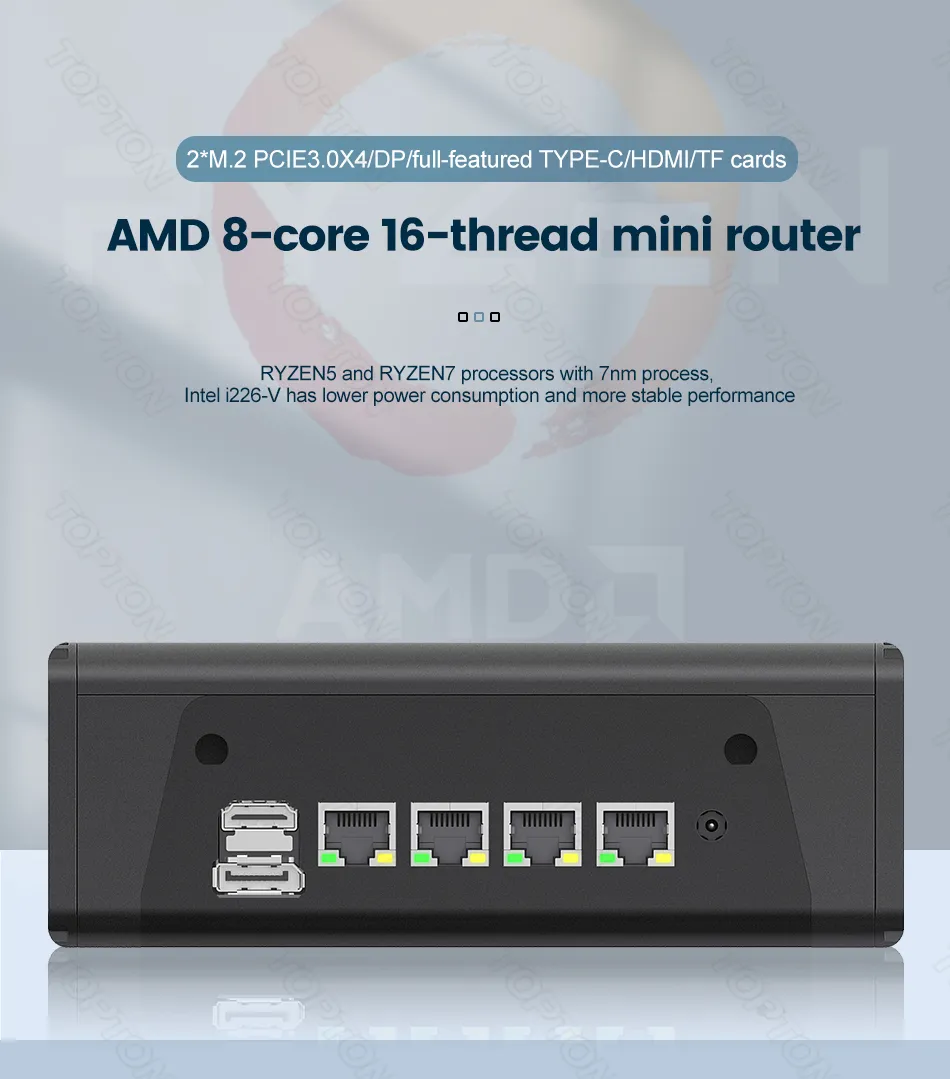

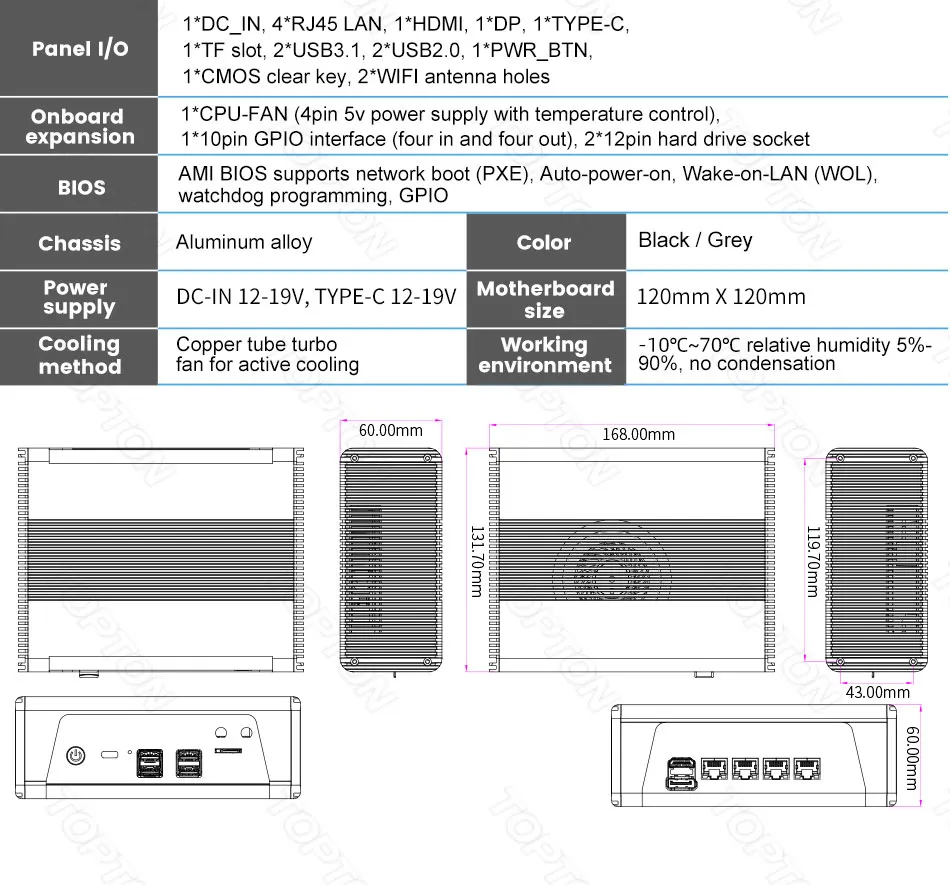

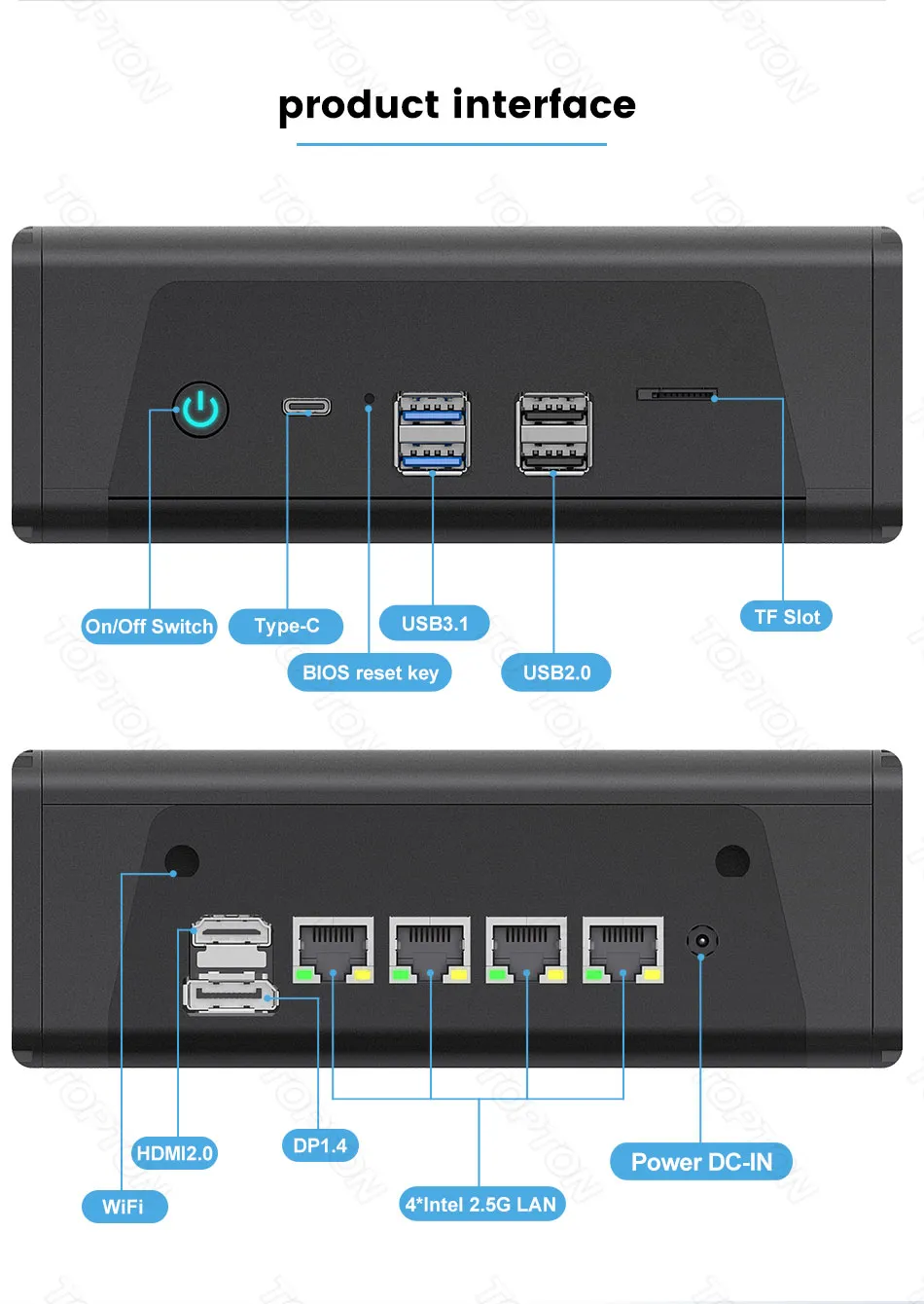

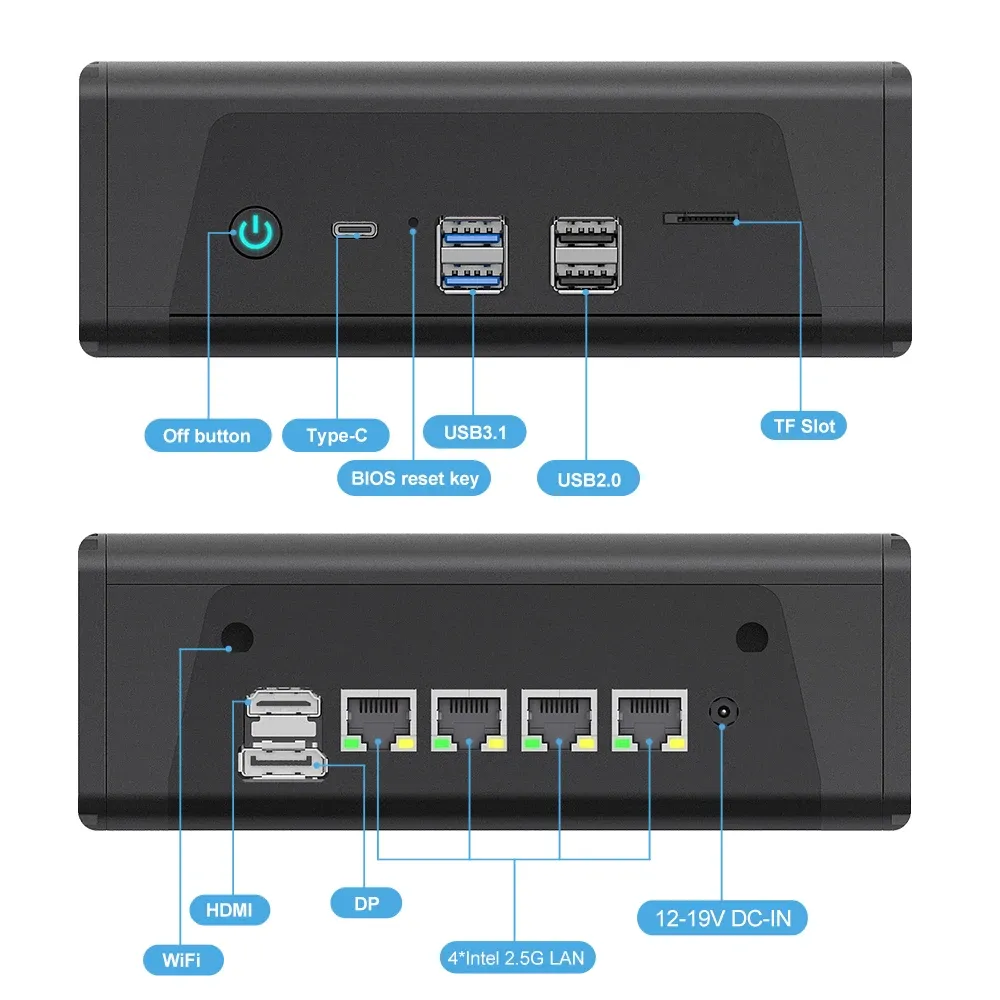

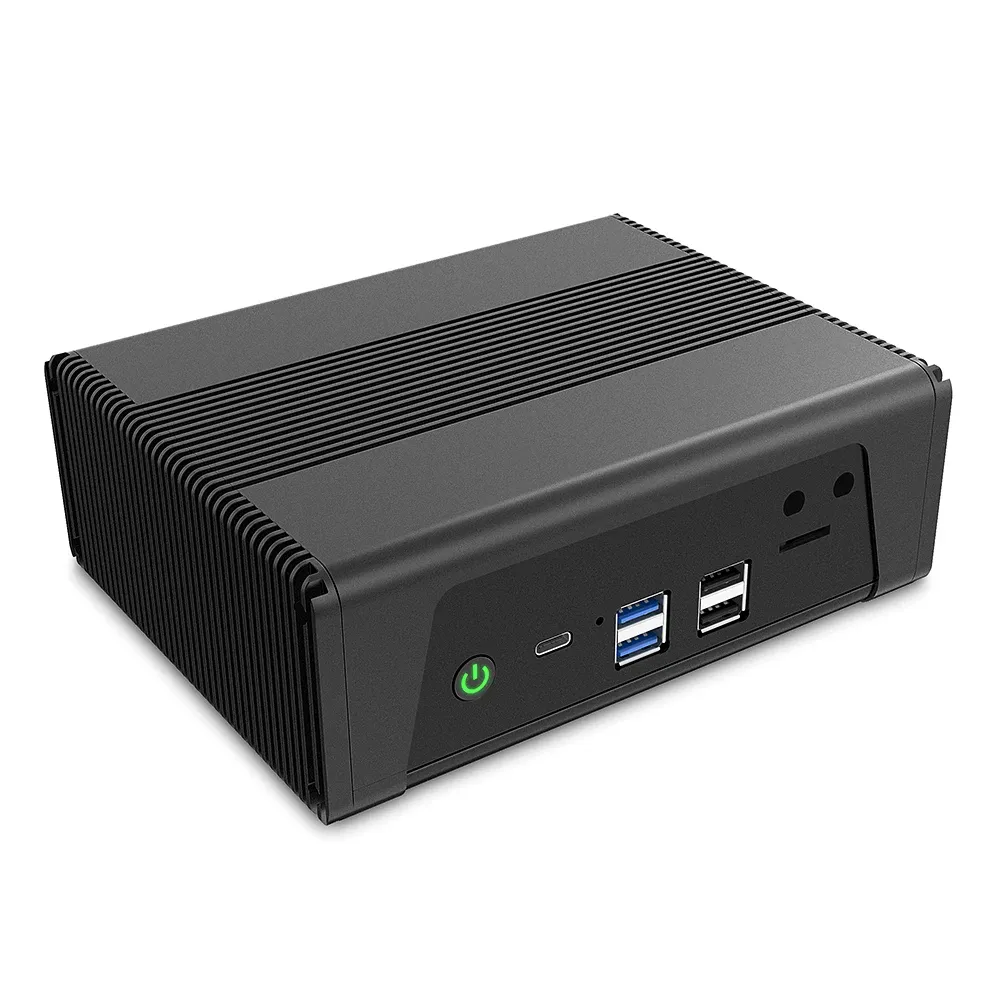

-4xIntel i226-V 2.5G UDE filter pure RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xUSB Type-C, 1xTF card slot.
-2xDDR4 SODIMM non-ecc ram slot, support 3200MHz.
-Support four storage: 2xM.2 NVMe/PCIe3.0x4 2280 SSD 1x2.5``SATA3.0 SSD/HDD(internal hange) 1x2.5``SATA3.0 SSD/HDD(external from knock-out hole).
-1xM.2 KEY-E 2232 slot, support WiFi connection, also support transfer to 1xM.2 NVMe/PCIe3.0x4 2280 SSD with PCB adapter board.
-Full-featured Type-C support data, display, reverse charging.
-TF card slot support storage and system disk boot.
-Support three display: 1xHDMI2.0, 1xDP1.4, 1xType-C, 3x4K@60Hz UHD video display.
-Support wide voltage 12-19V input.
-Support TPM2.0, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

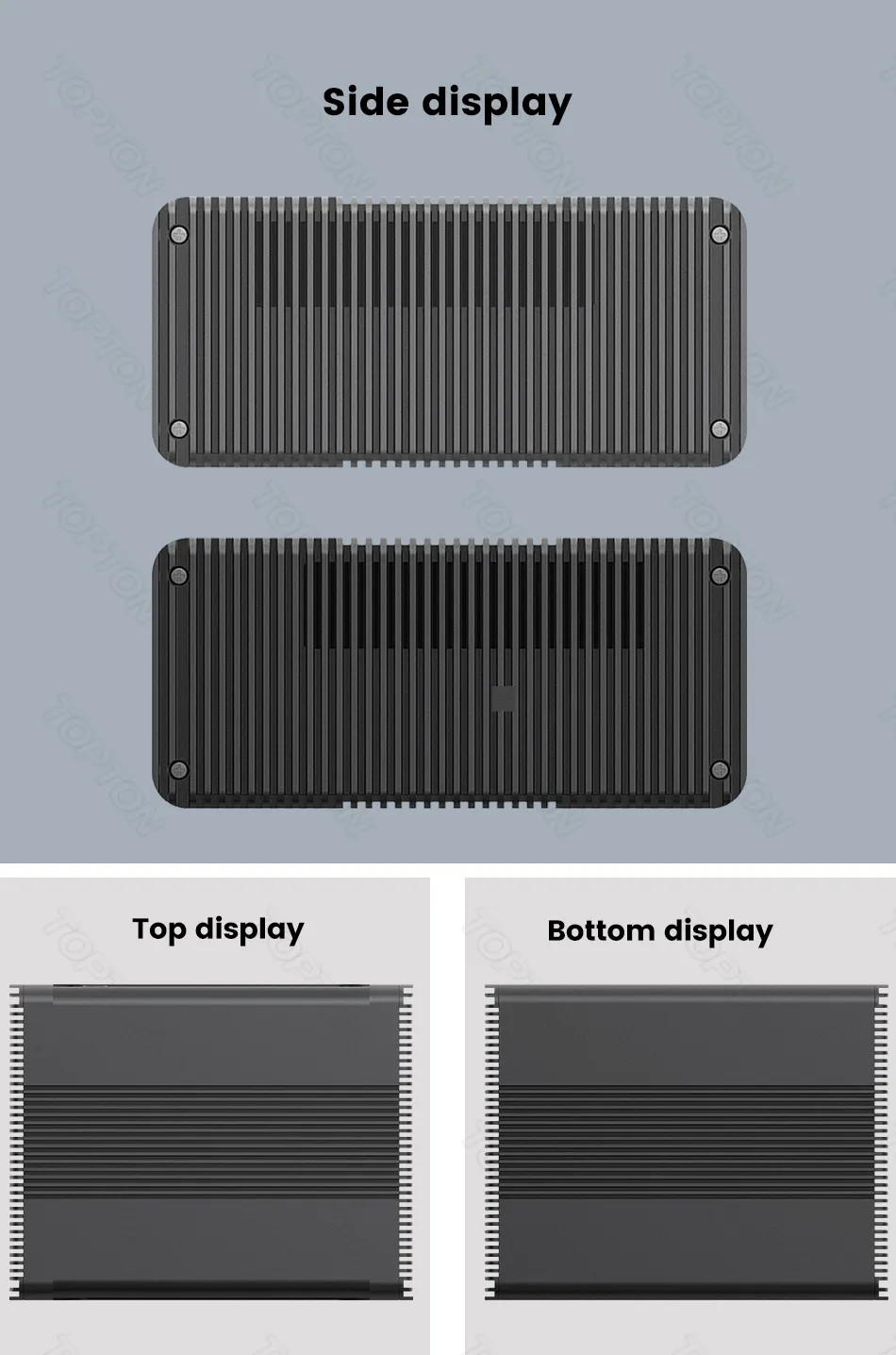

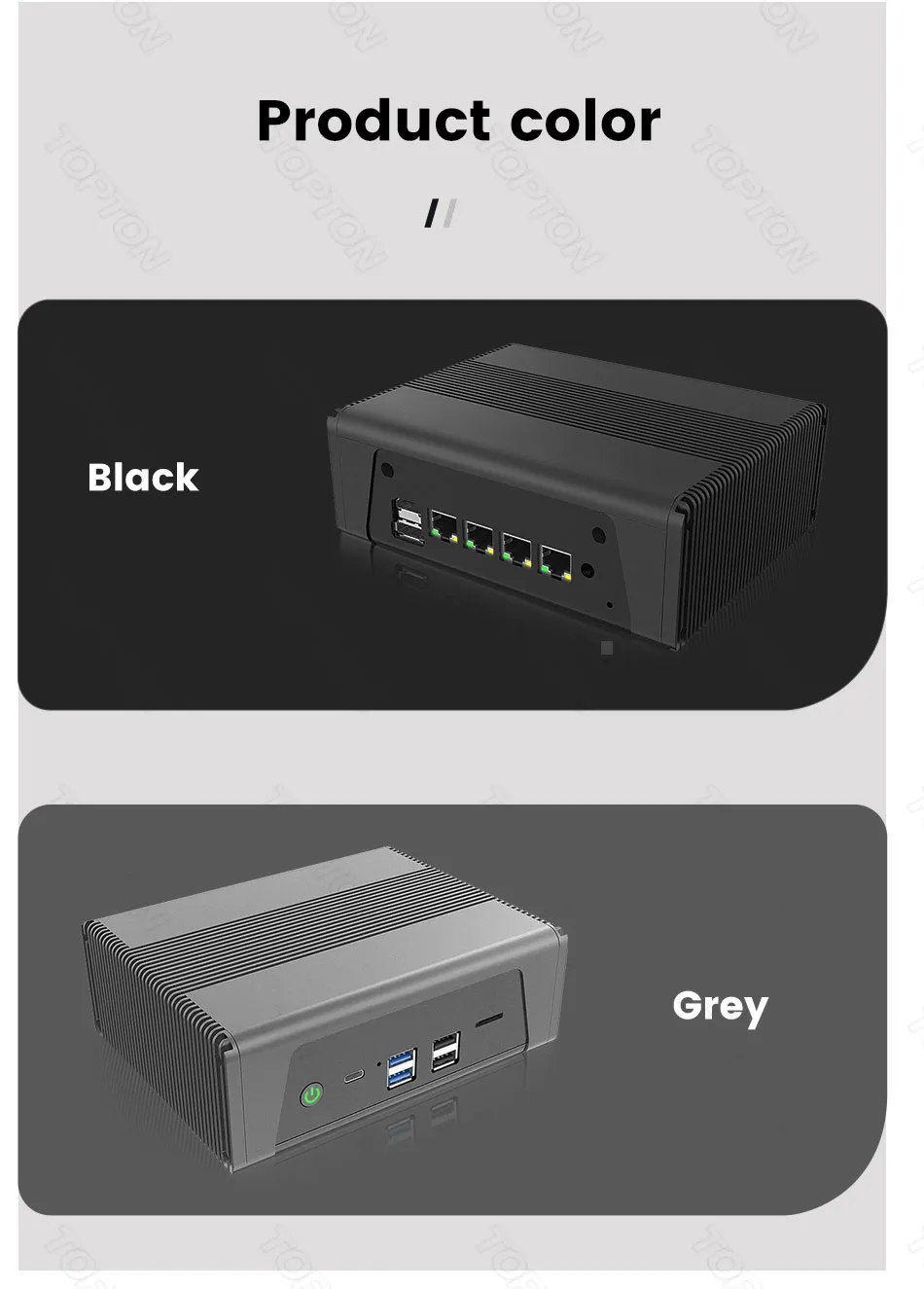

-Full Aluminum Alloy high quality solid-built shell, excellent cooling performance, Exquisite production craft on outside design.

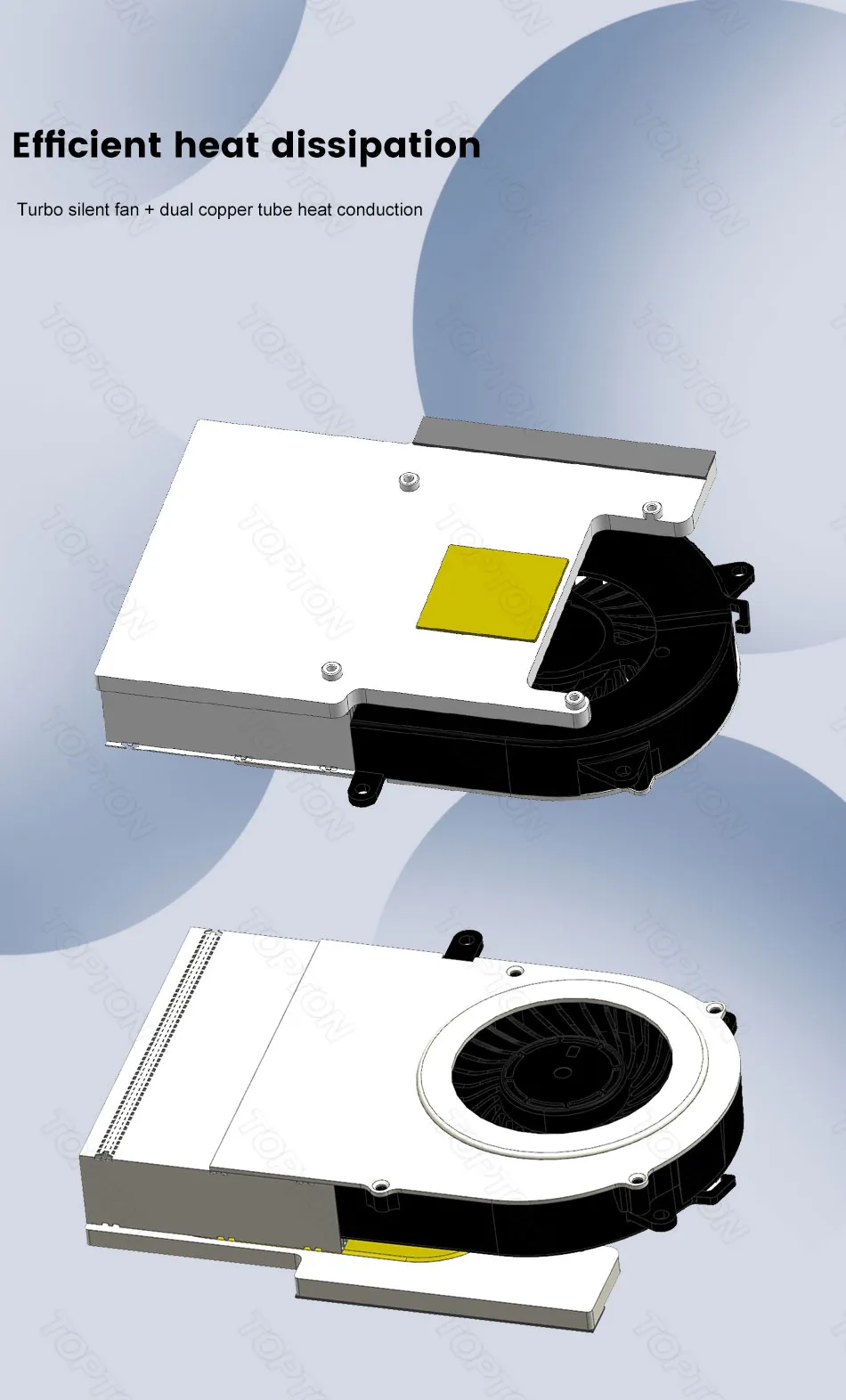

-Turbo silent fan with dual copper tube, durability for industrial grade field, work as long as 7x24 hours.
Package List
1xMini PC
1xPower Adapter
1xPower Cord
1xM.2 2232 to 2280 PCB adapter board
1xSATA Cable
1xScrews Bag
1xinternal 8010 Fan (store gift, dual fan reduce temperature greatly)
All bundles on sale DO NOT include WiFi(antennas), AC WiFi(antennas) cost US $10, AX WiFi6(antennas) cost US $30. If you need, pay at .
DO NOT buy Barebone Mini PC ("No Ram No Storage" bundle)If you are NOT IT hardware technician. PC demands professional skill to assemble and debug. Barebone bundle had best to use , Micron etc ORIGINAL brand ram and storage.
500GB 2.5`` HDD add extra 50$, 1TB 2.5`` HDD add extra 65$, 2TB 2.5`` HDD add extra 100$.
Upgrading link:
(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade 1TB 2.5`` HDD, pay 65pcs for US$65, remember to leave message noting which one you upgrade for...)
