Car Bluetooth OBD2 Scanner Diagnostic Tool ELM327 Latest V2.1 Advanced OBDII Code Reader Vehicle Tools

Car Bluetooth OBD2 Scanner Diagnostic Tool ELM327 Latest V2.1 Advanced OBDII Code Reader Vehicle Tools

Top 5 Reasons to Get V2.1 Mini etooth ELM327 OBD HH:

1.This is a vehicle diagnostic tool interface scanner, which is is used to read trouble codes, clear trouble codes and detect fuel pressure and so on.

2.OBDII Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.

3.The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go.

4. To uninstall the program, simply delete the entire contents of the folder where the program resides.

5.The software supports four platforms - For DOS/Windows/Android. This product is a non-oem, generic product.

Notice: This device can't work with IOS system.

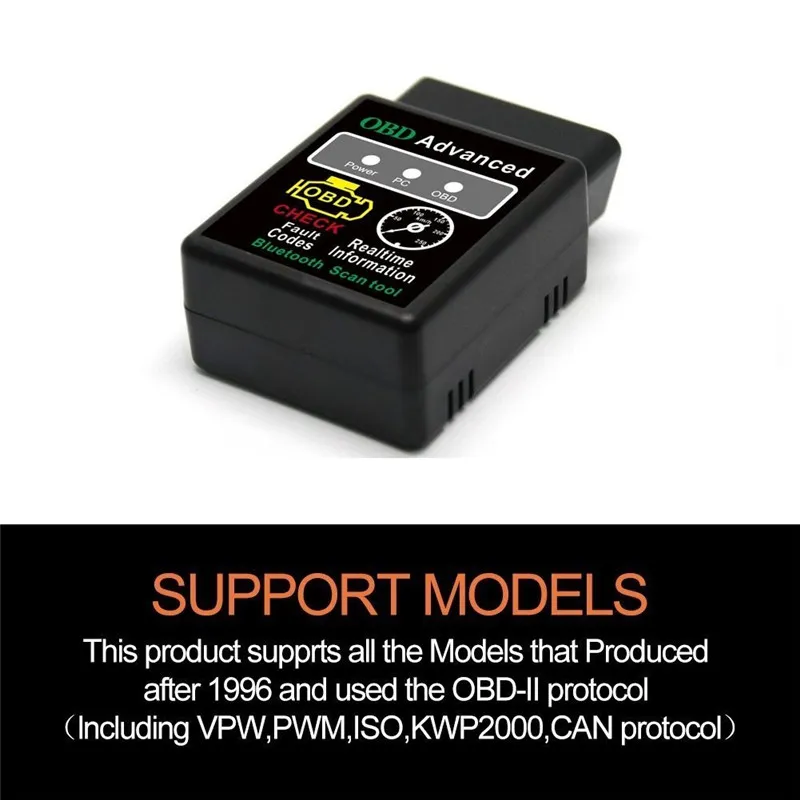

It supports all OBD-II protocols:

• Works with all OBD-II compliant vehicles

• Wireless (Bluetooth)

• Software included for Palm, PDA

• Software included for Windows PC

• Software included for Windows Smartphone

• Supports ISO 9141, KWP2000

• Supports SAE J1850

• Supports CAN bus

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Specification:

Support OBD-II protocols as follows: * ISO15765-4 (CAN) * ISO14230-4 (KWP2000) * ISO9141-2 * J1850 VPW * J1850 PWM

SAE J1850 PWM (41.6 kbaud)

SAE J1850 VPW (10.4 kbaud)

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

Device type: Car bluetooth read interface scanner

Interface type: Auto ELM327 V1.5 interface

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Free Software:

1. Scantool.net

2. GM Mode 22 Scan Tool by Terry

3. OBD Gauge for PalmOS and Pocket PC by Dana Peters

4. OBD Logger by Jonathan Senkerik

5. OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)

6. obd2crazy.com

7. OBD2 Scantool by Ivan Andrewjeski

8. OBDII for ELM322 by David Huffman

9. pyOBD by Donour Sizemore for MacOSX and Linux

10. RDDTC by Pete Calinski

11. Real Scan by Brent Harris

12. ScanTest for Pocket PC by Ivan Ganev aka a-ser

13. OBD by WDT

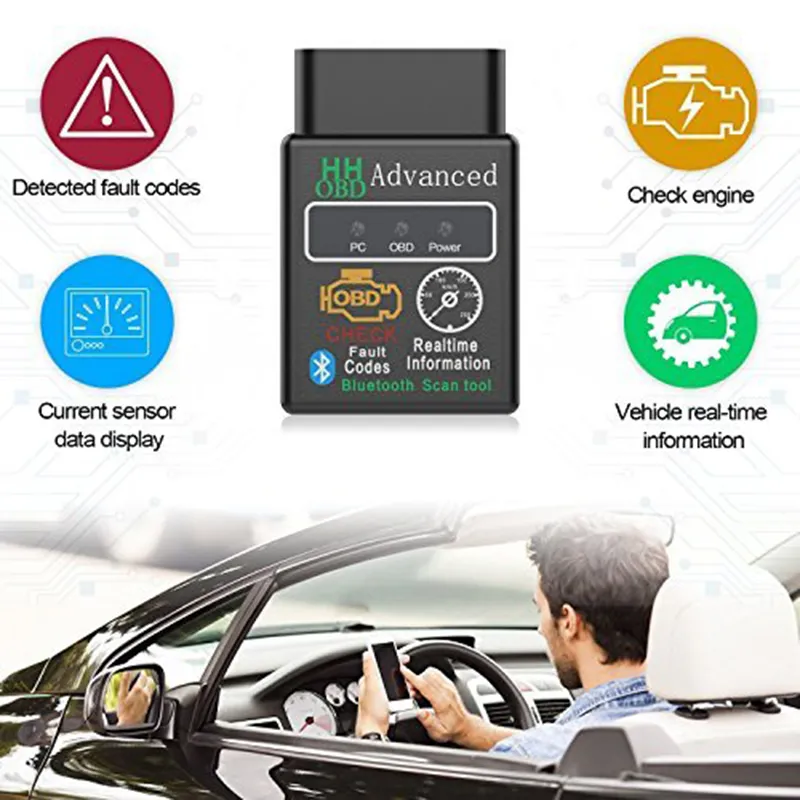

V2.1 Mini Bluetooth ELM327 OBD HH Car Diagnostic Scanner Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others

Package List

1 x ELM 327 OBD HH Mini Bluetooth V2.1

1 x CD Drive

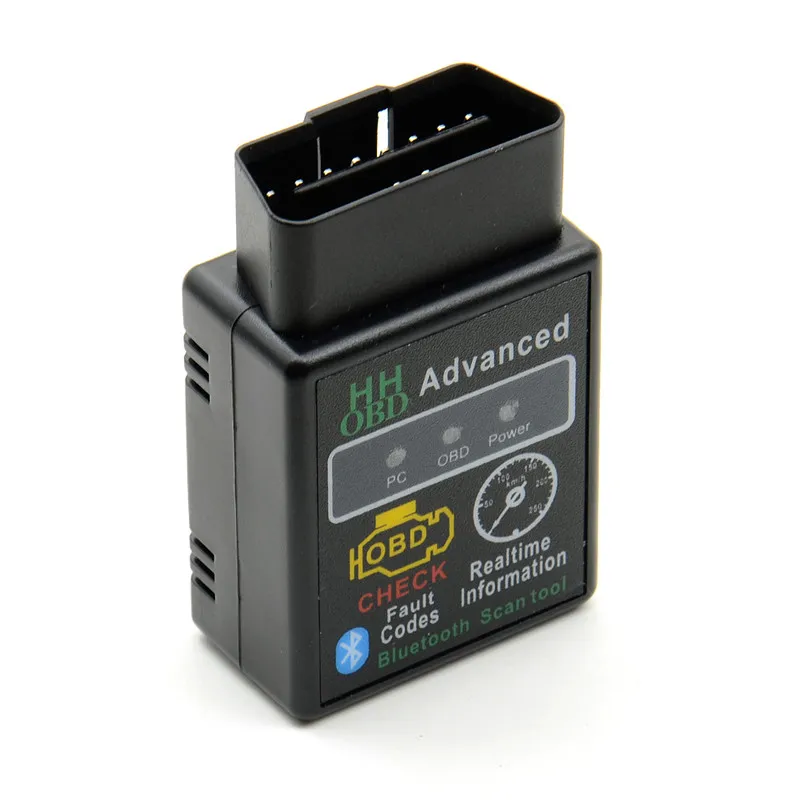

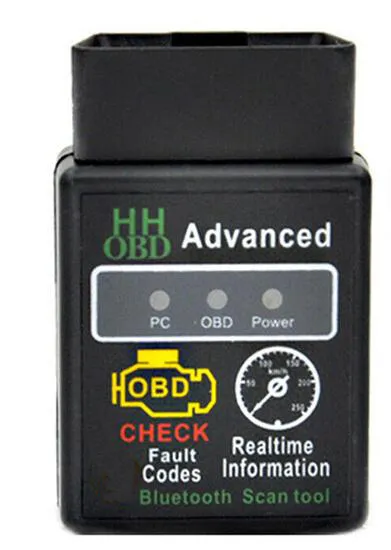

Picture Show
