MAX2870 Signal Generator 23.5Mhz-6000Mhz Frequency Touching Screen Radio Frequency Signal Source PC Software Controls

The MAX2870 is a wide band phase-locked loop (PLL) with integrated voltage controlled oscillators (VCOs) capable of operating in both integer-N and fractional-N modes.
When coupled with an externals reference oscillator and loop filter, the MAX2870 constitutes a high working performance frequency synthesizer capable of synthesizing frequencies from 23.5MHz to 6000MHz while maintaining superior phase noise and spurious performance.
Built-in multiple integrated VCOs covering(ranges from 3000MHz to 6000MHz) and output dividers(ranging from 1 to 128) which is used to implement clock output overing a wide frequency ranges. Compatible with 1.8V control logic.

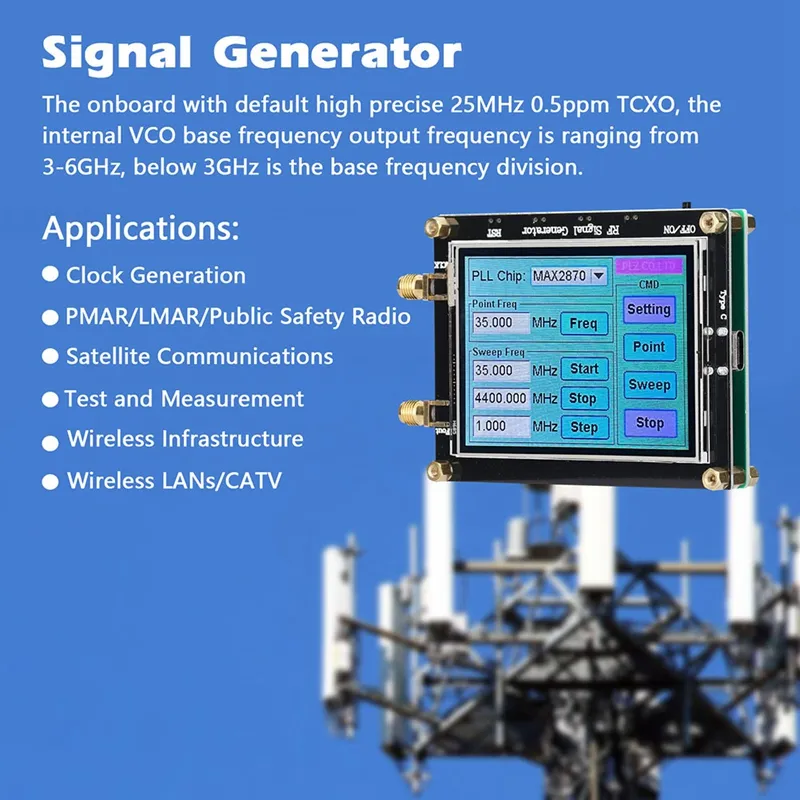

The onboard with default high precise 25MHz 0.5ppm TCXO, the internal VCO base frequency output frequency is ranging from 3-6GHz, below 3GHz is the base frequency division.
It can be controlled by PC, output amplitude: -4 to 5dBm, 4-level screen controls. Equipped with two frequency output modes, you can choose dot frequency and sweeping frequency according to your demands.

Main Features:
Support manual or automatic VCO selection.
Output binary buffers/dividers for extended frequency ranges:
1/2/4/8/16/32/64/128;
Fine performance PFD:
105MHz in integer-N mode;
50MHz in fractional-N mode.
Reference frequency up to 200MHz.
Operates from 3.0V to 3.60V supplys.
Dual programmable outputs: -4dBm to 5dBm.
Hardware and software shutdown controls.
Compatible with 1.8V controls logic.
Applications:
Clock Generation
PMAR/LMAR/Public Safety Radio
Test and Measurement
Module Features:
Module power supply TYPE-C: 5V@0.2A.
Output and external clock interface: SMA-K (inner screw inner hole).
Output frequency mode: point frequency, sweeping frequency optional screen control.
Provide PC upper computer control program.

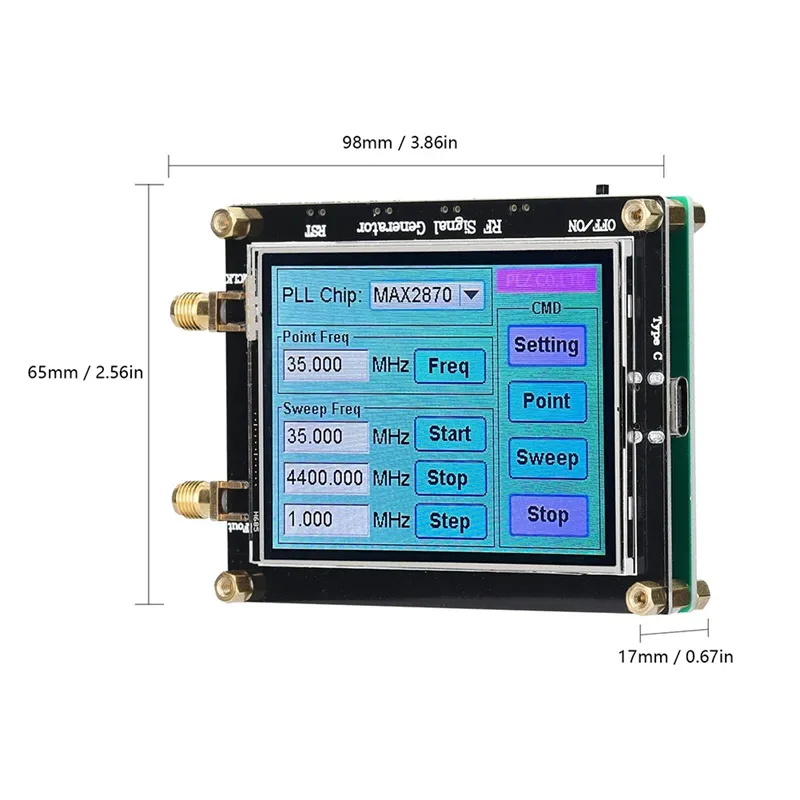

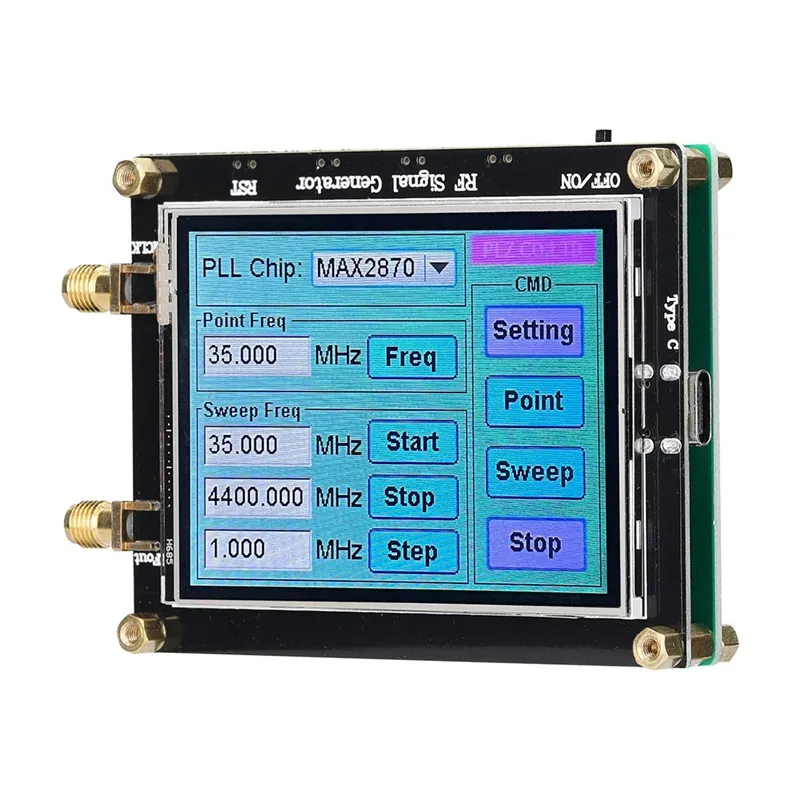

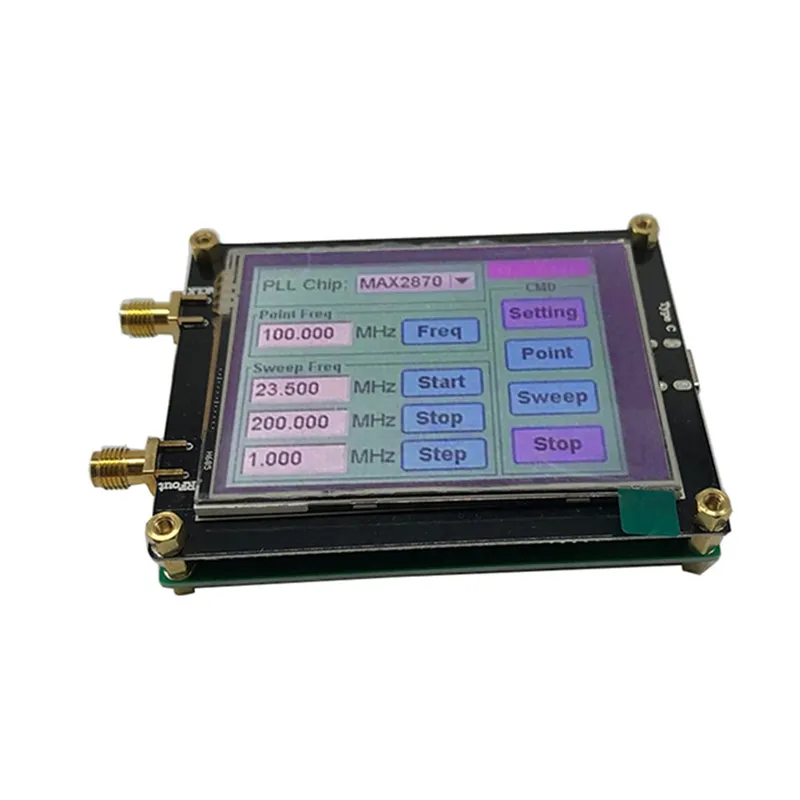

Name: Signal Generator
Model: MAX2870
Material: printed circuit board
Module power supplys: /- 5V
Current: 0.2A
Working temperature ranges: -40℃ to 85℃
Item size: 98 x 65 x 17mm / 3.86 x 2.56 x 0.67inch
colour: black
Material: plastic

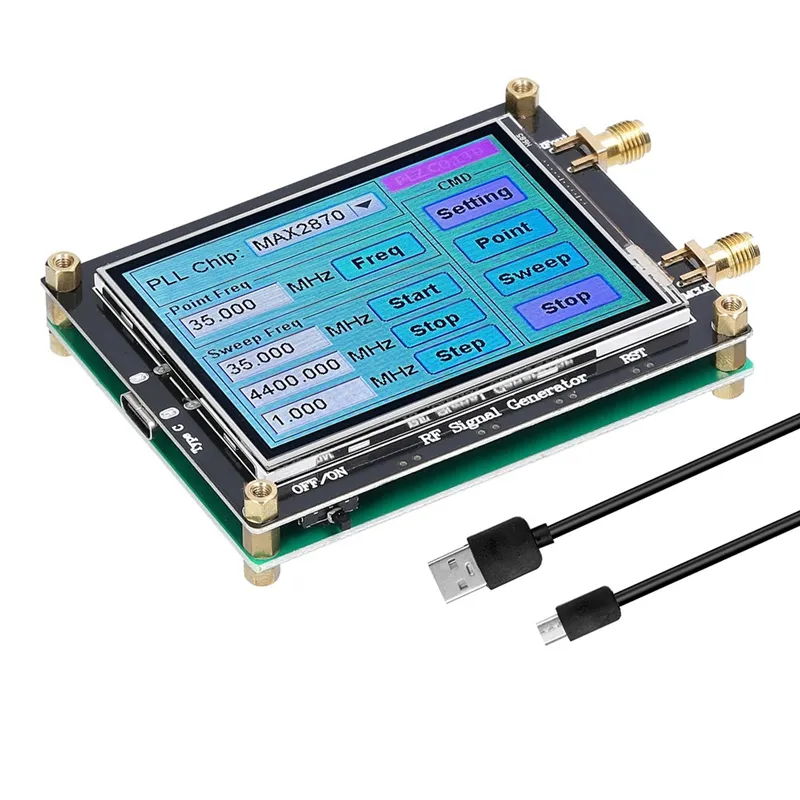

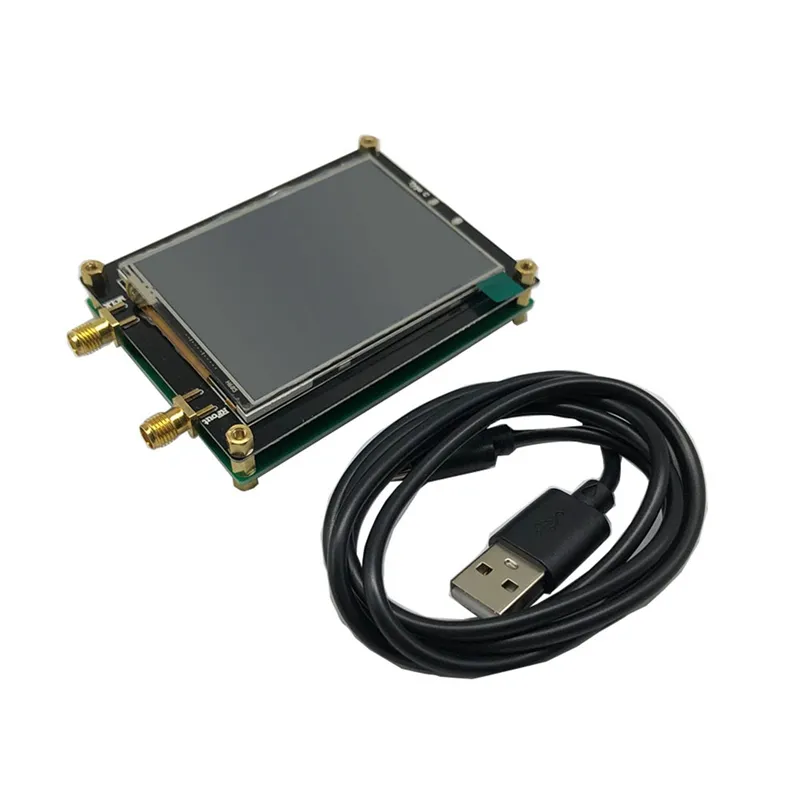

Package Contents:
1 x Signal Generator
1 x USB Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
